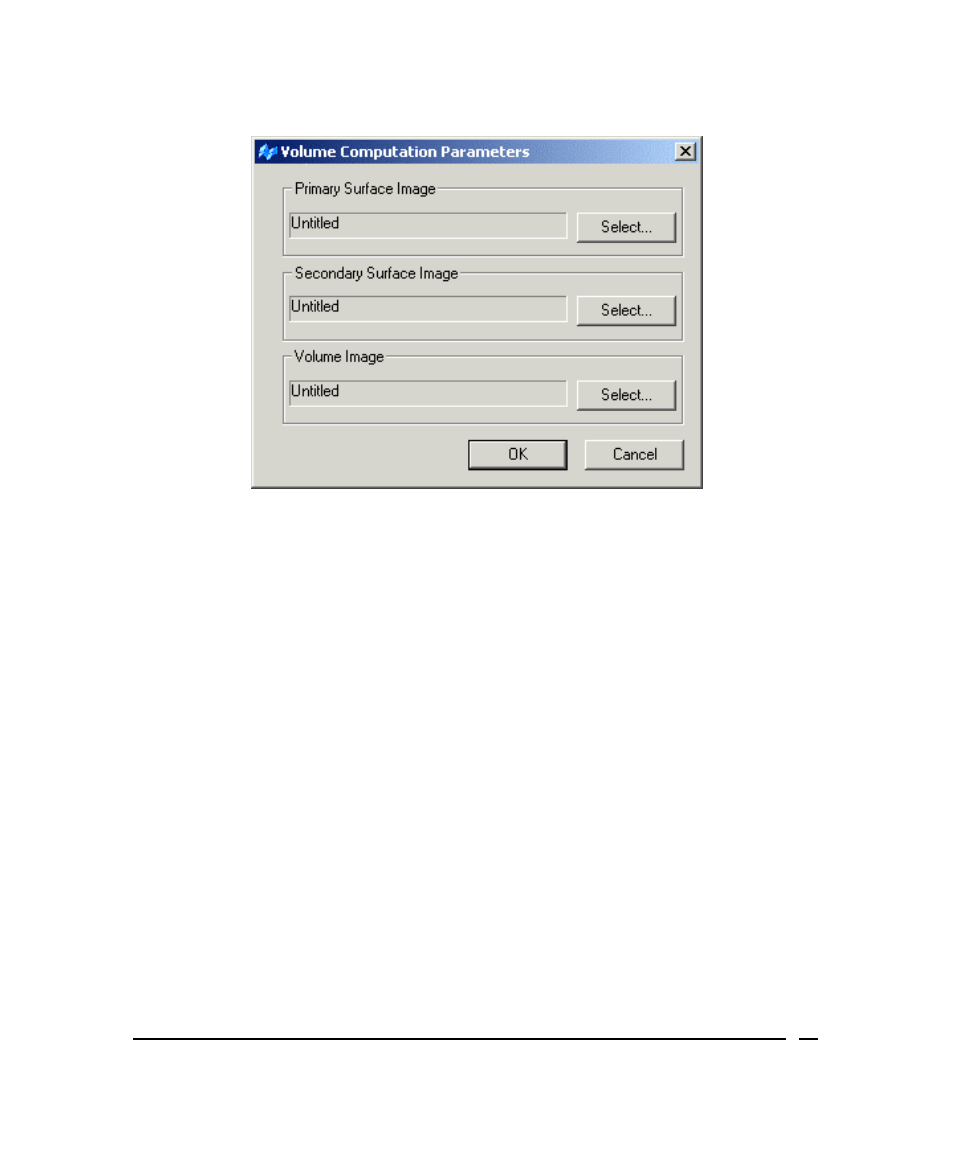

Figure 41. Settings Volume Computation Parameters dialog box
The Select buttons for Primary Surface Image and Secondary Surface
Image shown in the dialog box of Figure 41 lead to their own Open dialog
boxes where you can specify a geoencoded DDS_VIF file as input.
2. For each of the image types, click Select and specify a DDS_VIF file to
use and click OK.
When you specify a DDS_VIF file for the Volume Image parameter, the
system displays a Save button instead of an OK button.
3. Click Save after specifying your file name in the Open dialog box for the
Volume Image parameter. This file will become the output file for the delta
computed for primary and secondary surface image files.
The system returns to the Settings Volume Computation Parameters
dialog box.
4. Click OK in the Settings Volume Computation Parameters dialog box.
5. From the Bathy Pro main menu, choose Volume → Compute Volume.
