Triton BathyPro - Manual (Page 26)

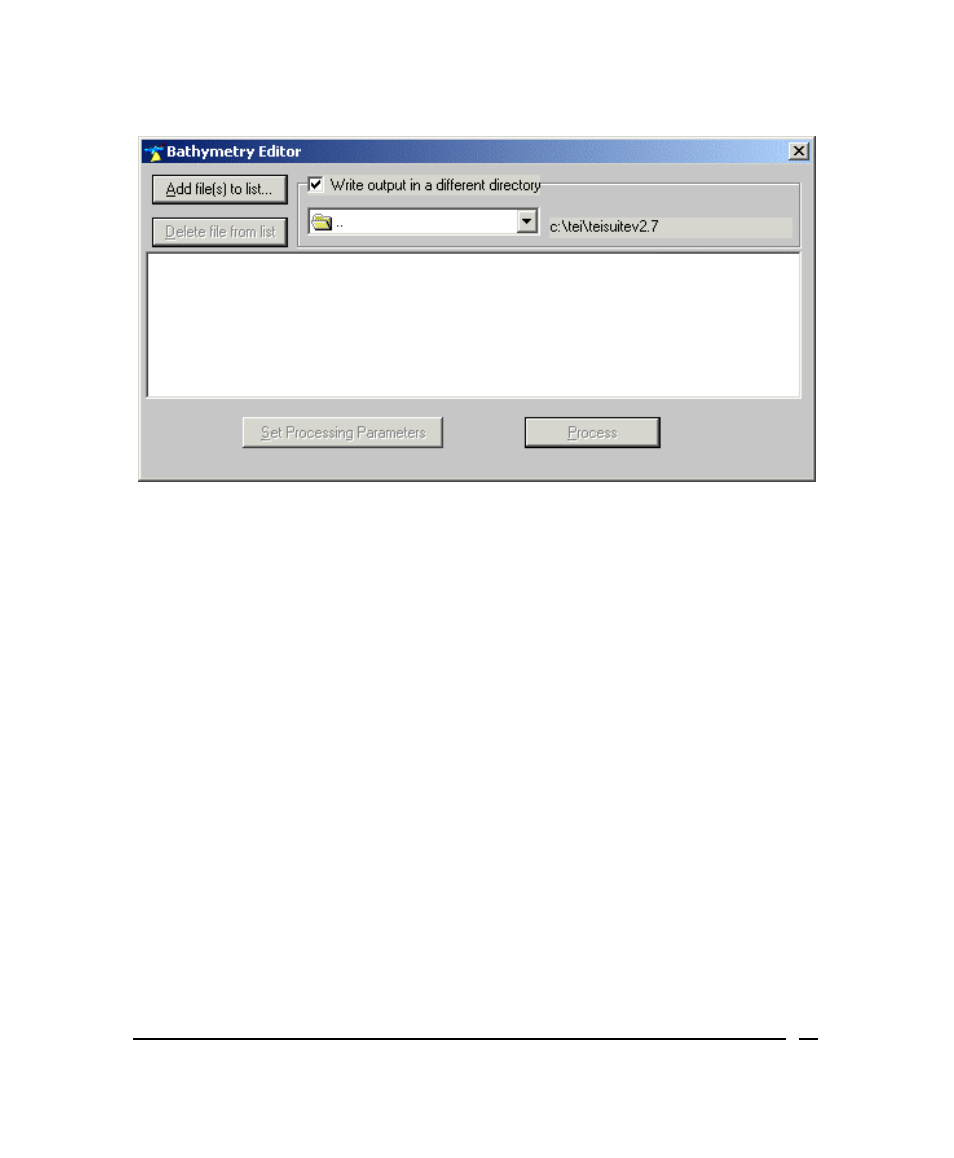

Figure 5. Typical initial Bathymetry Editor dialog box
Setting Bathymetry Editor’s Parameters
After the Bathymetry Editor program is running, you can set up your parameters.
To set your parameters in the Bathymetry Editor dialog box
1. Click Add file(s) to list… and select one or more files having the file
extension XTF. All files in the list will be processed. Choose Delete file
from list if a specific line is not desired.
Before you specify files to add to the list, the functions Delete file from
list, Set Processing Parameters, and Process buttons are grayed out.
They remain unavailable until a file or files are added to this dialog box.
2. Put a check mark in Write output in a different directory and click the
down arrow (↓) to browse for the directory you want.
June 2004 BathyPro User’s Manual
26
