6. Click OK in the Select processing dialog box.
7. From BathyPro’s main menu, choose Patch Test →Roll, Pitch, Yaw,
Latency with Multibeam Data.
The system displays the Patch Test dialog box with these mutually
exclusive choices: Roll, Latency, Pitch, and Yaw (Figure 56).

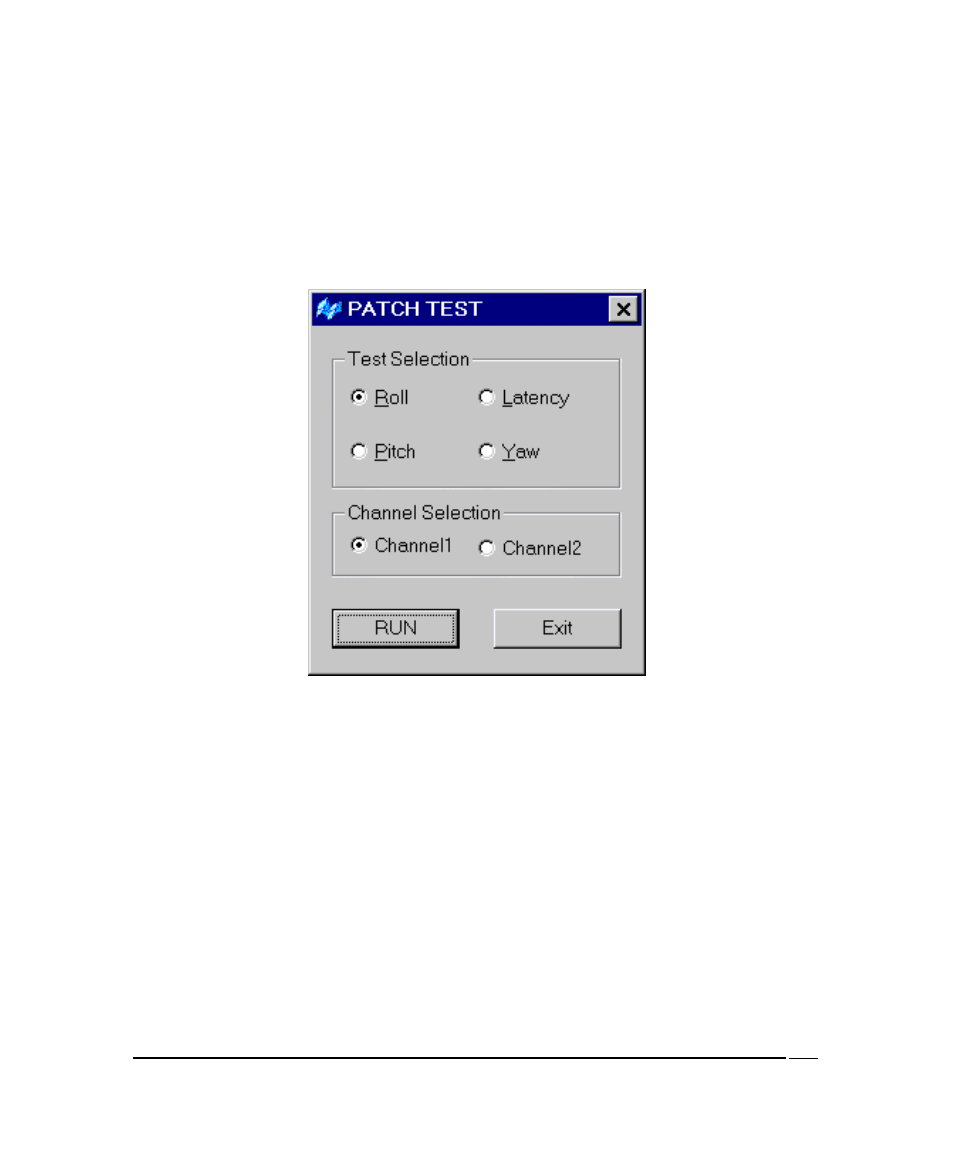

Figure 56. Patch Test and Channel Selection dialog box
8. Starting with Roll as your first attitude parameter to be tested, click RUN.
The system displays the Select patch test line 1 dialog box, with
Process All checked.
9. Select the first of the two roll files to be analyzed. If the entire file is not
required, uncheck Process All, specify ping values for First Scan and
Last Scan to limit the test to a range in the file, and then click on the
Open button.
10. Select the second roll file to be analyzed. As in the previous step, select
just a range if the entire line is not required. Click on Open when finished.
At this stage the system displays a GIS image for the selected offset test.
Figure 57 shows a sample of a completed roll test phase of a patch test.
