Boonton 4540 Series RF Power Meter
Operation 4-51
4.5.30 Display Menu
The Display menu is the entry point for accessing and editing display configuration parameters.
Main Pg 2 > Display > Key Beep
Description: Set the audible key beep on or off.
Menu Type: Toggle.
Choices: On, Off
SCPI Command: SYSTem:BEEP
Main Pg 2 > Display > Graph Header
Description: Provides access to the Graph Header menu, which is
used to configure the text fields above the graph area.
Menu Type: Menu select.
Main Pg 2 > Display > Text Mode
Description: Provides access to the Text Mode menu, which is used
to configure the Modulated Mode text display.
Menu Type: Menu select.
Main Pg 2 > Display > Backlight
Description: Provides access to the Backlight menu, which is used to
configure the backlight and screensaver settings.
Menu Type: Menu select.
Main Pg 2 > Display > Envelope
Description: Enables or disables the Envelope display mode. In Pulse and Modulated modes, the
Envelope display is used to highlight the range of signal excursions. When envelope
display mode is ―On‖, the trace is drawn as a wide line, which is filled in between the
minimum and maximum power readings. A series of vertical pixels, representing the
range of signal excursions or "envelope" of the signal will be illuminated for each
horizontal trace pixel.
Menu Type: Toggle.
Choices: On. Off
SCPI Command: DISPlay:ENVELOPE ; ON, OFF

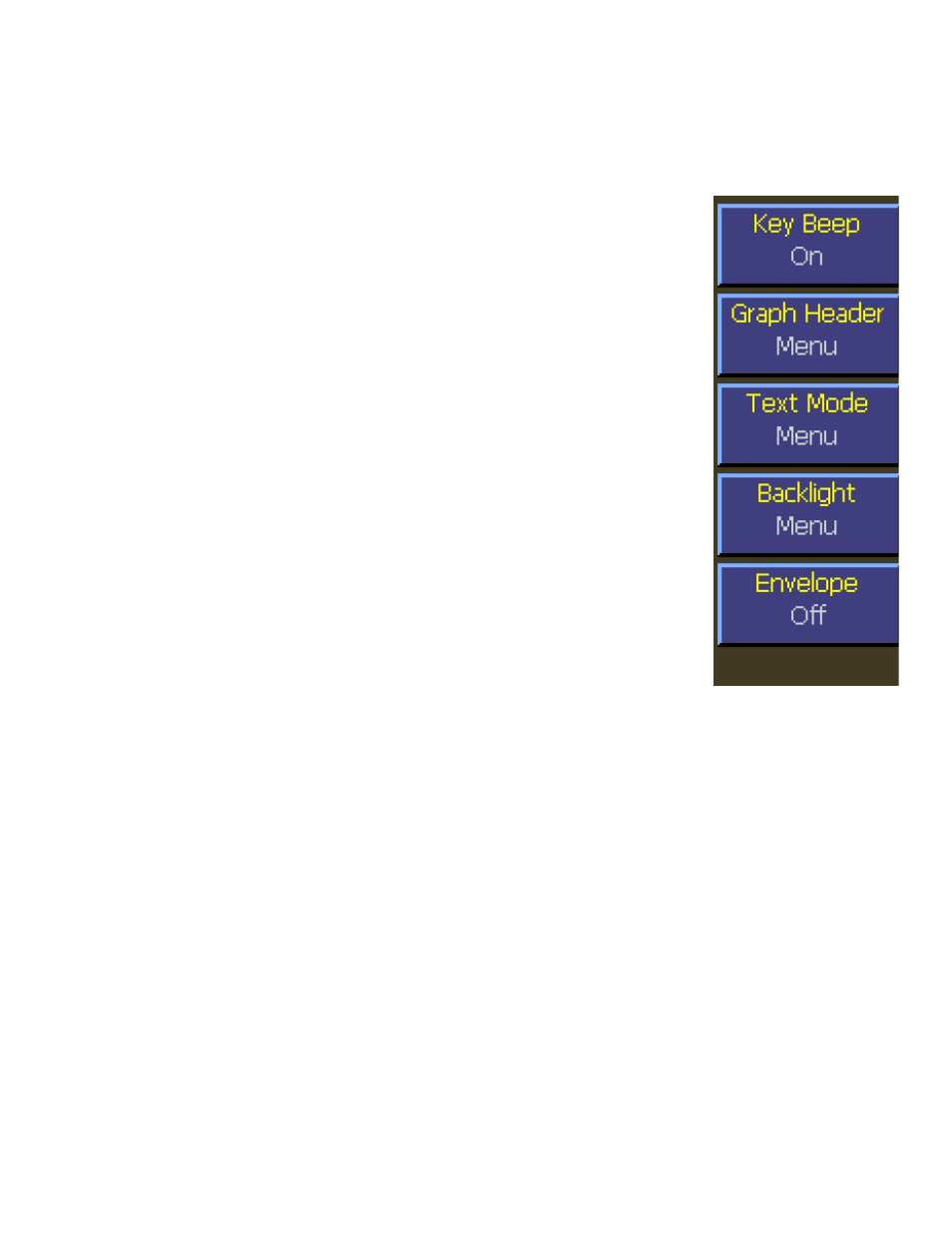

Fig. 4-41 Display Menu
