Boonton 4540 Series RF Power Meter
Operation 4-26
Main > Channel > Channel 1 | 2 > Extensions Pg 1 > Corrections > Duty Cycle
Description: Sets the duty cycle in percent for calculated CW pulse power measurements. Valid only for
thermal sensors and CW sensors in the square-law region and subject to the accuracy of the duty
cycle value. Setting the duty cycle to 100% is equivalent to a CW measurement. Note that this
method of measuring pulse power should be used only if a peak power measurement cannot be
used. This item is not pictured above—it only appears in Modulated mode. The Duty Cycle
Menu item is disabled for Peak Power Sensors.
Menu Type: Numeric Value
Range: 0.01% to 100.00%
SCPI Command: SENSe[1|2]:CORRection:DCYCle

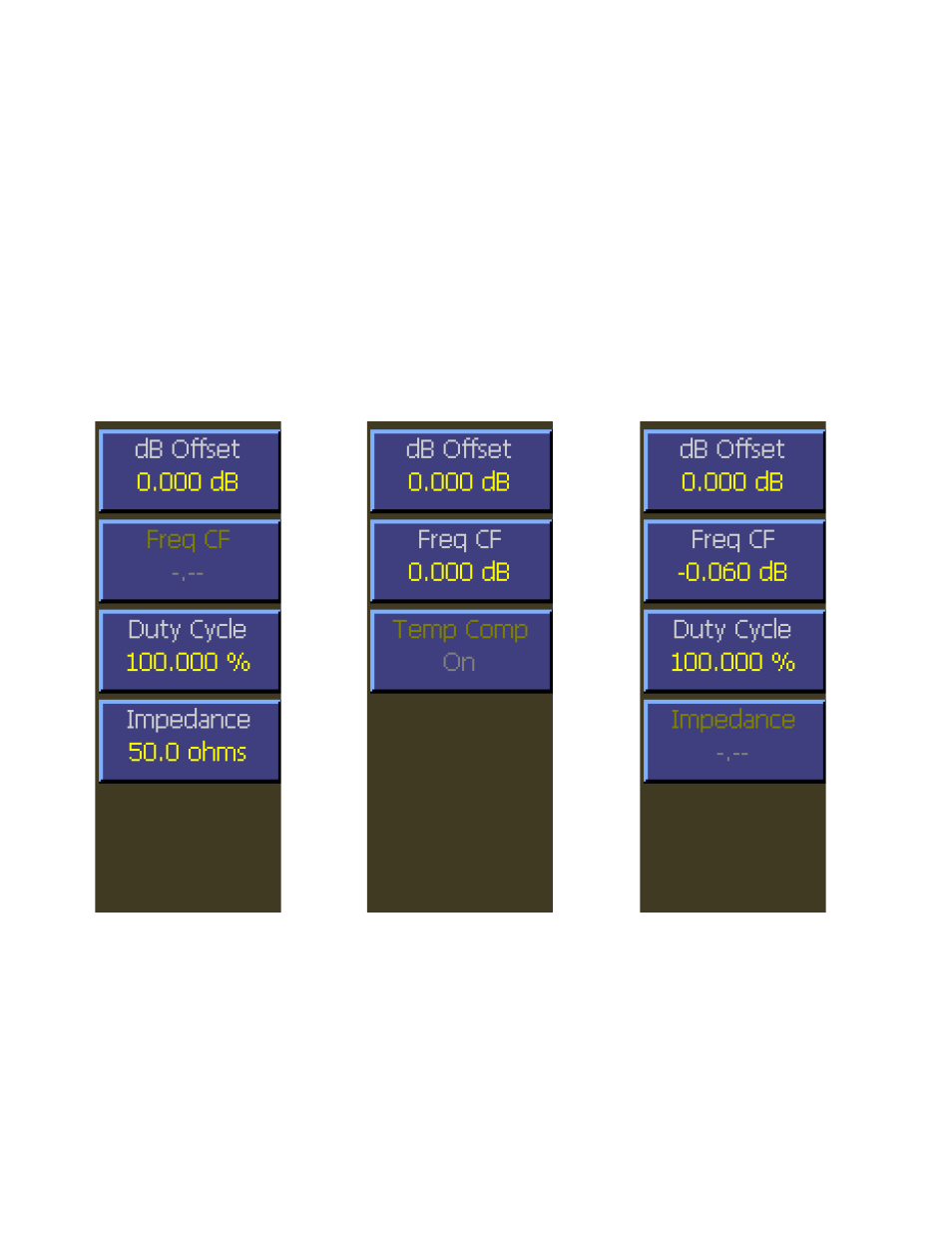

Fig. 4-19 Corrections
Menu (Pulse Mode)
Voltage Probe
Fig. 4-20 Corrections
Menu (Pulse Mode) Peak
Power Sensor - No TC
Fig. 4-21 Corrections
Menu (Pulse Mode)
CW Power Sensor
