Boonton 4540 Series RF Power Meter
Operation 4-64
4.5.40 System > I/O Config > Multi IO > IO Mode Status Out Menu
This menu selects a TTL compatible status signal to the Multi-I/O BNC connector on the rear panel.
Main Pg 2 > System > I/O Config > Multi IO > IO Mode (Status Out)
Description: Alternately opens and closes the IO Mode Popup Menu.
All selections are made from the popup menu. Use the
Up Arrow ▲ and Down Arrow ▼ keys to select the
desired output. Press the Enter key to open the
appropriate submenu and close the popup menu. The
IO Mode menu box is common to all submenus and
displays the current selection.
Menu Type: Action.
SCPI Command: OUTPut:MIO:MODe STATus
Main Pg 2 > System > I/O Config > Multi IO > Source (Status Out)
Description: Selects the channel source of the status signal.
Menu type: Multiple Choice
Choices: Channel 1, Channel 2, Both
SCPI Command: OUTPut:MIO:STATus:SOURce < char data >
SCPI Arguments: CH1, CH2, BOTH
Main Pg 2 > System > I/O Config > Multi IO > Setting (Status Out)
Description: Selects the type of status signal.
Menu type: Multiple Choice
Choices: Alarm Active, Alarm Latch, MeasRdy, Calibrating
SCPI Command: OUTPut:MIO:STATus:SETTing < character data >
SCPI Arguments: ALMACT, ALMLATCH, MEASRDY, CAL

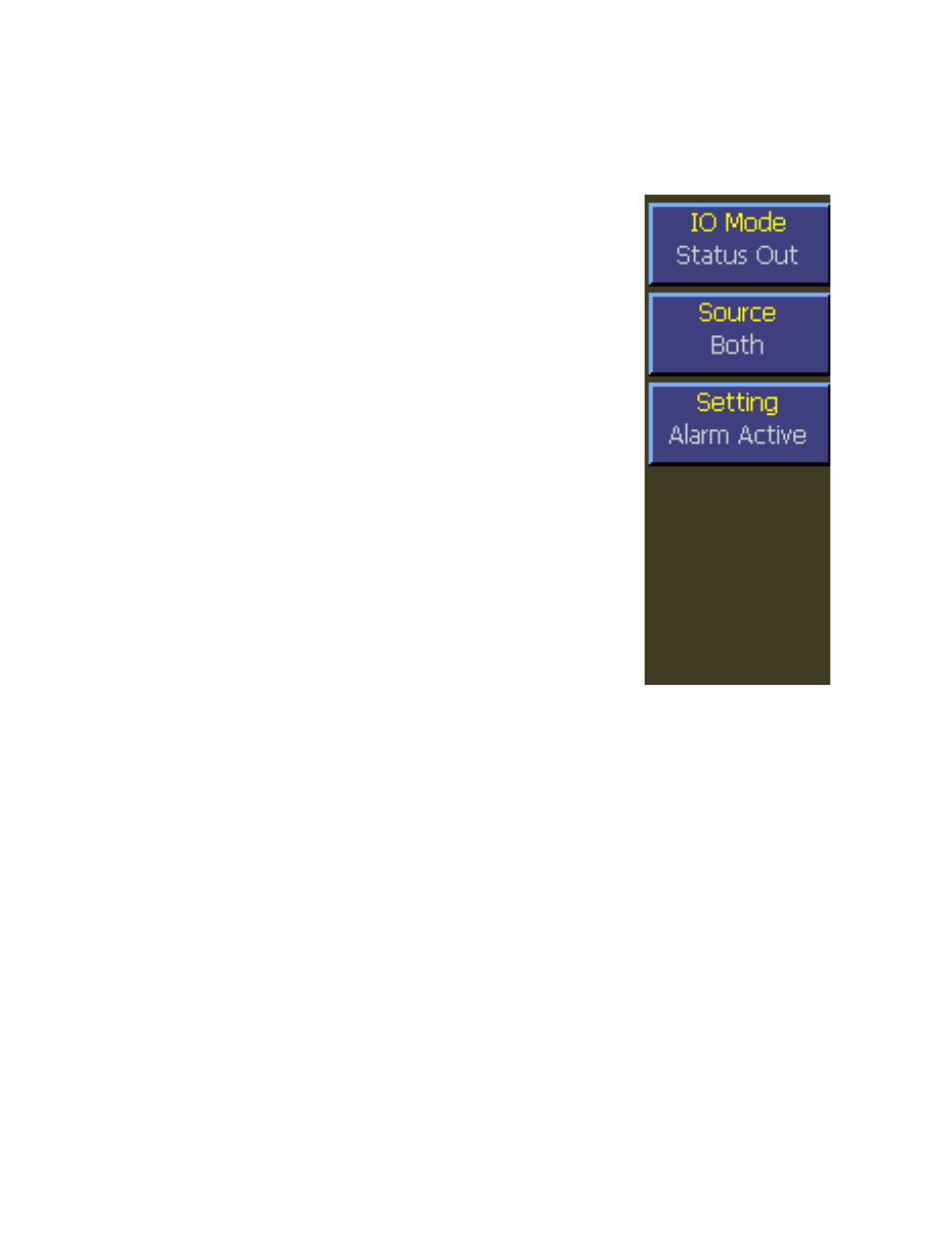

Fig. 4-52 MIO Mode
(Status Out) Menu
