Boonton 4540 Series RF Power Meter
Operation 4-66
Main Pg 2 > System > I/O Config > Multi IO > Scaling (Rec Out)
Description: Selects the scaling of the recorder signal.
Menu type: Multiple Choice
Choices: Manual, Auto
SCPI Command: OUTPut:[MIO:]RECOrder:SCALing < character data >
SCPI Arguments: AUTO, MANUAL
Main Pg 2 > System > I/O Config > Multi IO > Rec Limits (Rec Out)
Description: Opens the Recorder Limits Menu for manual scaling only.
Menu type: Menu Selection
4.5.42 System > I/O Config > Multi IO > Rec Out > Rec Limits Menu
This menu controls the scaling of the recorder output signal when manual scaling is
selected. Disabled for automatic scaling.
Main Pg 2 > System > I/O Config > Multi IO > Rec Limits > Max Power
Description: Sets the power level for full scale (max). Press the
menu key for numeric entry.
Menu type: Numeric value
Range: Same as channel power limits in channel units.
SCPI Command: OUTPut:[MIO:]RECOrder:MAX < numeric data >
Main Pg 2 > System > I/O Config > Multi IO > Rec Limits > Min Power
Description: Sets the power level for zero scale (min). Press the
menu key for numeric entry.
Menu type: Numeric value
Range: Same as channel power limits in channel units.
SCPI Command: OUTPut:[MIO:]RECOrder:MIN < numeric data >

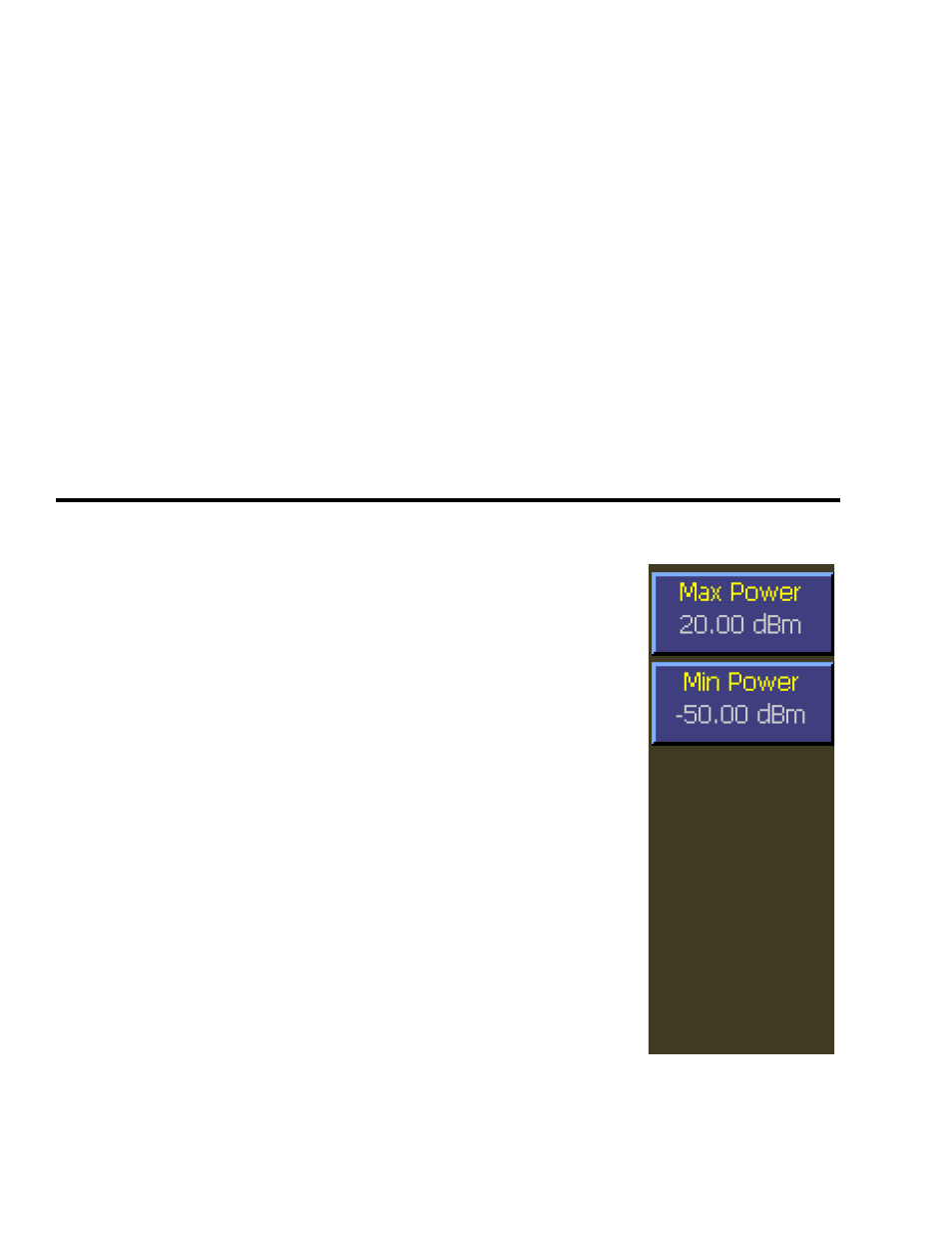

Fig. 4-54 MIO Mode
(Recorder Out)
Rec Limits Menu
