Boonton 4540 Series RF Power Meter
Operation 4-65
4.5.41 System > I/O Config > Multi IO > IO Mode Rec Out Menu
This menu selects an analog recorder ouput signal to the Multi-I/O BNC connector on the rear panel.
Main Pg 2 > System > I/O Config > Multi IO > IO Mode Rec Out
Description: Alternately opens and closes the IO Mode Popup Menu.
All selections are made from the popup menu. Use the
Up Arrow ▲ and Down Arrow ▼ keys to select the
desired output. Press the Enter key to open the
appropriate submenu and close the popup menu. The
IO Mode menu box is common to all submenus and
displays the current selection.
Menu Type: Action.
SCPI Command: OUTPut:MIO:MODe RECOrder
Main Pg 2 > System > I/O Config > Multi IO > Source (Rec Out)
Description: Selects the channel source of the recorder signal.
Menu type: Multiple Choice
Choices: Channel 1, Channel 2
SCPI Command: OUTPut:[MIO:]RECOrder:SOURce < char data >
SCPI Arguments: CH1, CH2
Main Pg 2 > System > I/O Config > Multi IO > Polarity (Rec Out)
Description: Selects the polarity of the recorder signal.
Menu type: Multiple Choice
Choices: Unipolar, Bipolar
SCPI Command: OUTPut:[MIO:]RECOrder:POLarity < character data >
SCPI Arguments: UNIPOLAR, BIPOLAR

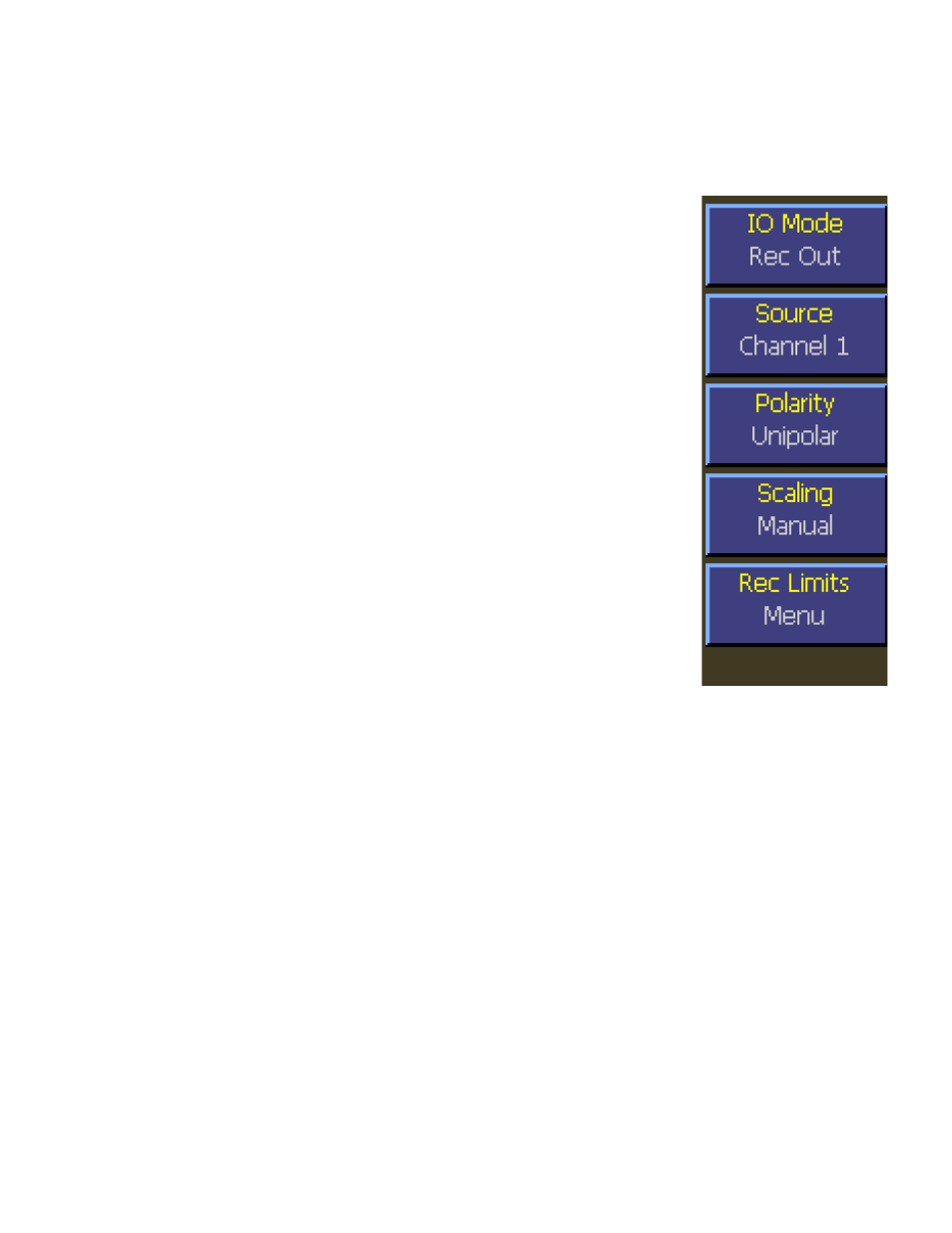

Fig. 4-53 MIO Mode Rec
Out Menu
