4.5.27 Term Options Menu (Statistical Mode)
The statistical mode menu provides for controlling the horizontal axis parameters of the CCDF display, the length of time or
maximum sample count of the CCDF and the action to be taken when the terminal condition is met.
Main Pg1 > Stat Mode > Term Options > Term Action
Description: Select the action to take when either the terminal
count is reached or the terminal time has elapsed.
Stop - Stop accumulating samples and hold the result.
Restart - Clear the CCDF and begin a new one.
Decimate - Divide all sample bins by 2 and continue.
Menu Type: Multiple choice
Choices: Stop, Restart, Decimate
SCPI Command: TRIGger:CDF:DECimate
Note: For remote operation, start/stop action is
controlled by the INITiate system.
Main Pg1 > Stat Mode > Term Options > Term Count
Description: Set the terminal sample count for the CCDF.
Menu Type: Numeric Value
Range: 2 to 4,096 Megasamples
SCPI Command: TRIGger:CDF:COUNt
Main Pg1 > Stat Mode > Term Options > Term Time
Description: Set the terminal running time for the CCDF.
Menu Type: Numeric Value
Range: 1 to 3600 seconds
SCPI Command: TRIGger:CDF:TIMe

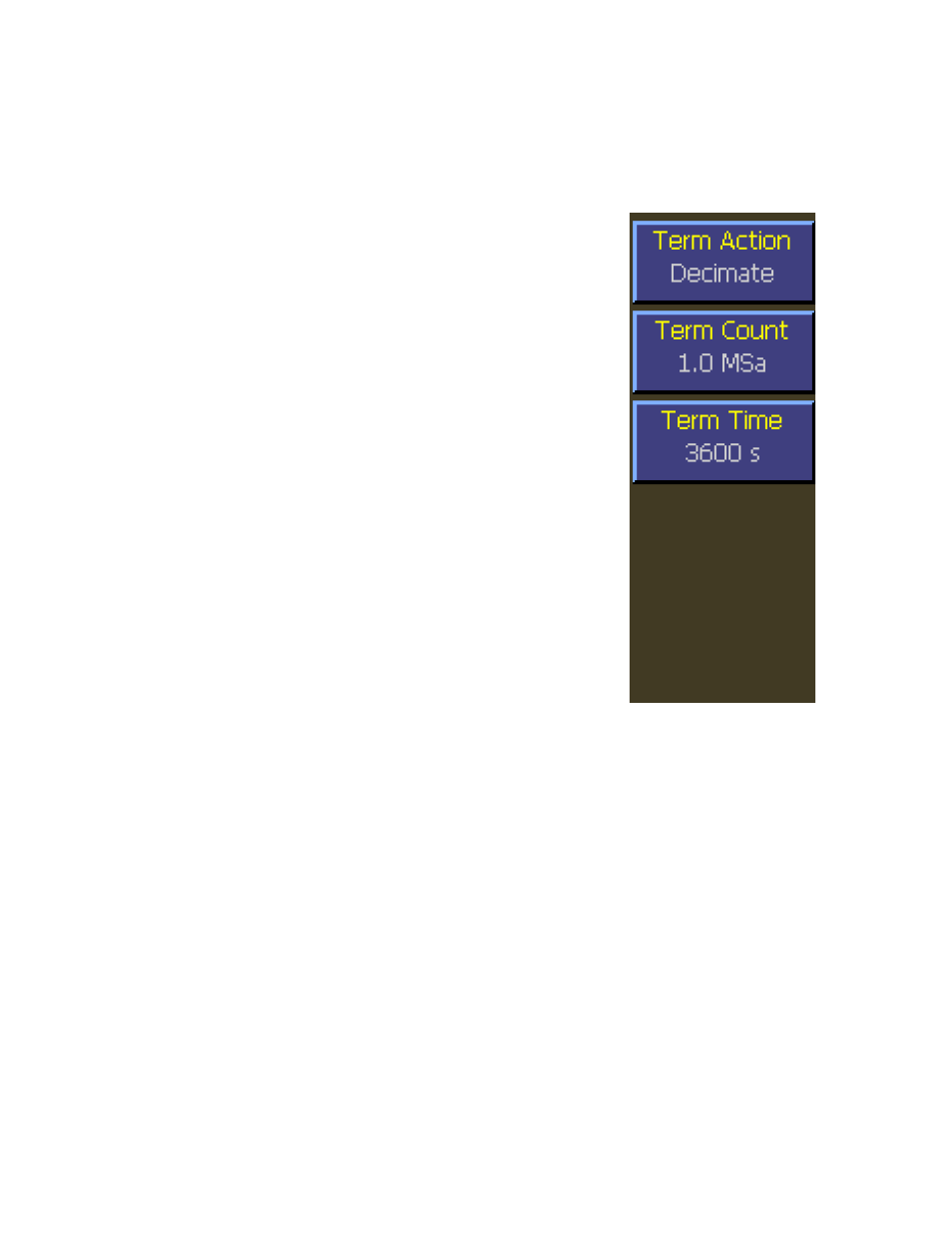

Fig. 4-38 Term Options
Menu (Statistical)
