Boonton 4540 Series RF Power Meter
Operation 4-4
4.5 Menu Reference
4.5.1 Main Menu - Pulse and Modulated Modes - Pg 1 (Top Level)
The Main Menu is the topmost menu level from which all other menus originate.
Main > Channel
Description: Opens the Channel Menu for functions specific to
CH1 and CH2. For Modulated Mode only, REF1
and REF2 are added.
Menu Type: Menu Selection
Main > Measure
Description: Opens the Measure Menu to select the measurement
mode and related functions.
Menu Type:
Menu Selection
Main > Trigger
Description: Opens the Trigger Menu to select trigger paramters.
Menu Type:
Menu Selection
Main > Time
Description: Opens the Time Menu to select time base
parameters.
Menu Type:
Menu Selection
Main > More
Description: Opens page 2 of the Main Menu.
Menu Type:
Menu Selection

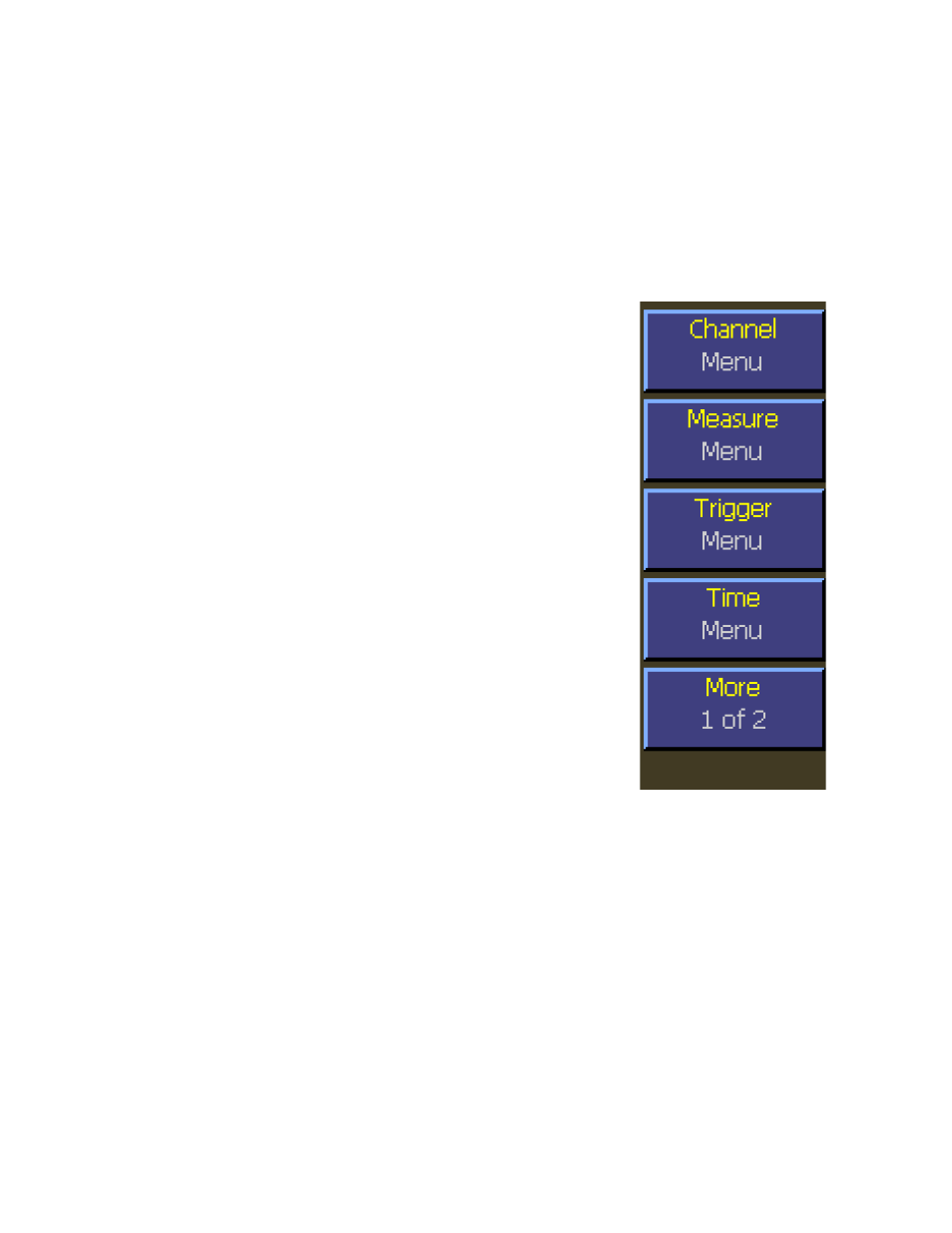

Fig.4-1 Main Menu Pg1
(Pulse and Modulated)
