Boonton 4540 Peak Power Meter User Manual - Manual (Page 111)

Boonton 4540 Series RF Power Meter
Operation 4-63
4.5.39 System > I/O Config > Multi IO Menu
This menu selects the signal to be sent to the Multi-I/O BNC connector on the rear panel.
Main Pg 2 > System > I/O Config > Multi IO > IO Mode (Off)
Description: Alternately opens and closes the IO Mode Popup Menu.
All selections are made from the popup menu. Use the
Up Arrow ▲ and Down Arrow ▼ keys to select the
desired output. Press the Enter key to open the
appropriate submenu and close the popup menu. The
IO Mode menu box is common to all submenus and
displays the current selection.
Menu Type: Action.
SCPI Command: OUTPut:MIO:MODe OFF

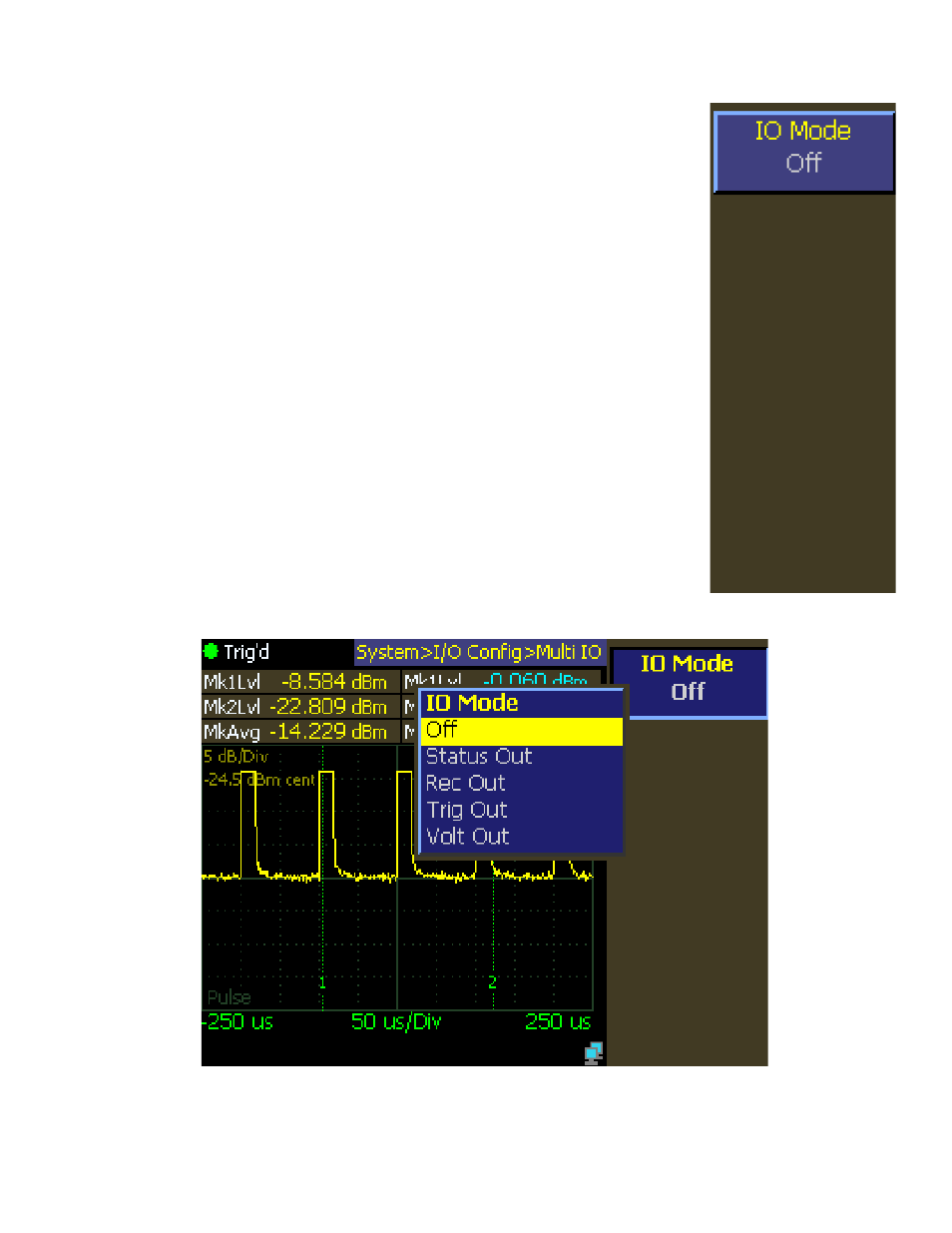

Fig. 4-50 Multi IO Menu
Fig. 4-51 Multi IO Mode Popup Menu
