Boonton 4540 Series RF Power Meter
Operation 4-68
4.5.44 System > I/O Config > Multi IO > IO Mode Volt Out Menu
This menu selects a voltage level to the Multi-I/O BNC connector on the rear panel.
Main Pg 2 > System > I/O Config > Multi IO > IO Mode (Voltage Out)
Description: Alternately opens and closes the IO Mode Popup Menu.
All selections are made from the popup menu. Use the
Up Arrow ▲ and Down ▼ Arrow keys to select the
desired output. Press the Enter key to open the
appropriate submenu and close the popup menu. The
IO Mode menu box is common to all submenus and
displays the current selection.
Menu Type: Action.
SCPI Command: OUTPut:MIO:MODe VOLTage
Main Pg 2 > System > I/O Config > Multi IO > Volts Out (Voltage Out)
Description: Selects the voltage level of the output signal.
Menu type: Numeric value.
Range: ± 10.00 volts, in V or mV units
SCPI Command: OUTPut:MIO:VOLTage < numeric data >

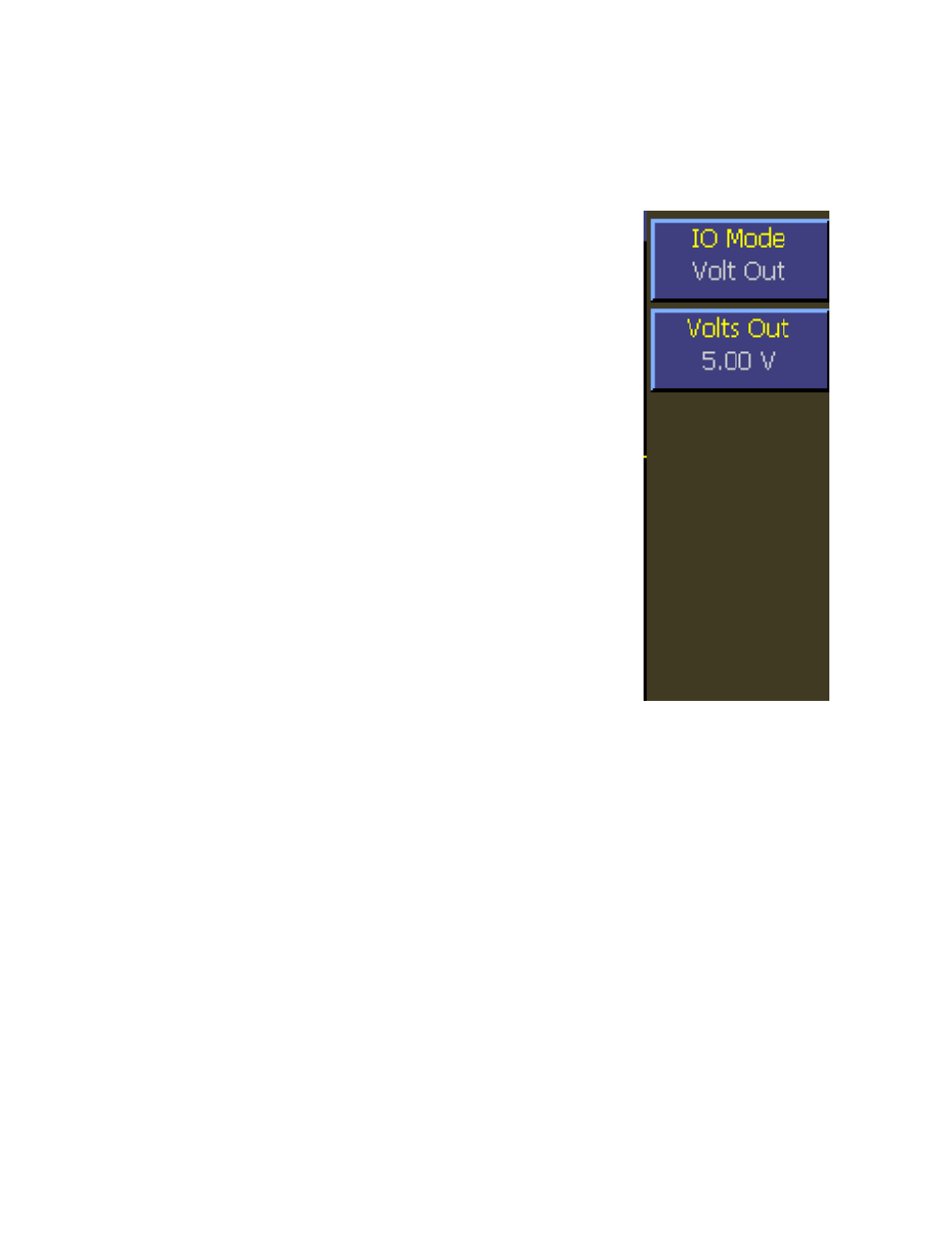

Fig. 4-56 MIO Mode
(Voltage Out)
