Boonton 4540 Series RF Power Meter
Operation 4-54
4.5.32 Display > Text Mode Menu
The Text Mode menu can be used to configure the Modulated text display. The main measurement sources for channel 1 and
channel 2 can be set from this menu. There are also menu items that provide access to configurations form the secondary
measurement fields.
Main Pg 2 > Display > Text Mode > Ch1 Source
Description: Set the channel 1 main measurement source for the
Modulated mode text display.
Menu Type: Pop-up Selection.
Choices: Avg CW Power, CH1-CH2, CH1-CH2, CH1/CH2,
Reference 1, CH1/Ref1, CH1-Ref1, CH1+Ref1
Main Pg 2 > Display > Text Mode > Ch1 Options
Description: Select the CH1 Options menu, which provides items
for editing the secondary measurement fields for
channel 1.
Menu Type: Menu Select.
Main Pg 2 > Display > Text Mode > Ch2 Source
Description: Set the channel 2 main measurement source for the
Modulated mode text display.
Menu Type: Pop-up Selection.
Choices: Avg CW Power, CH2-CH1, CH2-CH1, CH2/CH1,
Reference 2, CH2/Ref2, CH2-Ref2, CH2+Ref2
Main Pg 2 > Display > Text Mode > Ch2 Options
Description: Select the CH2 Options menu, which provides items for editing the secondary
measurement fields for channel 2.
Menu Type: Menu Select.

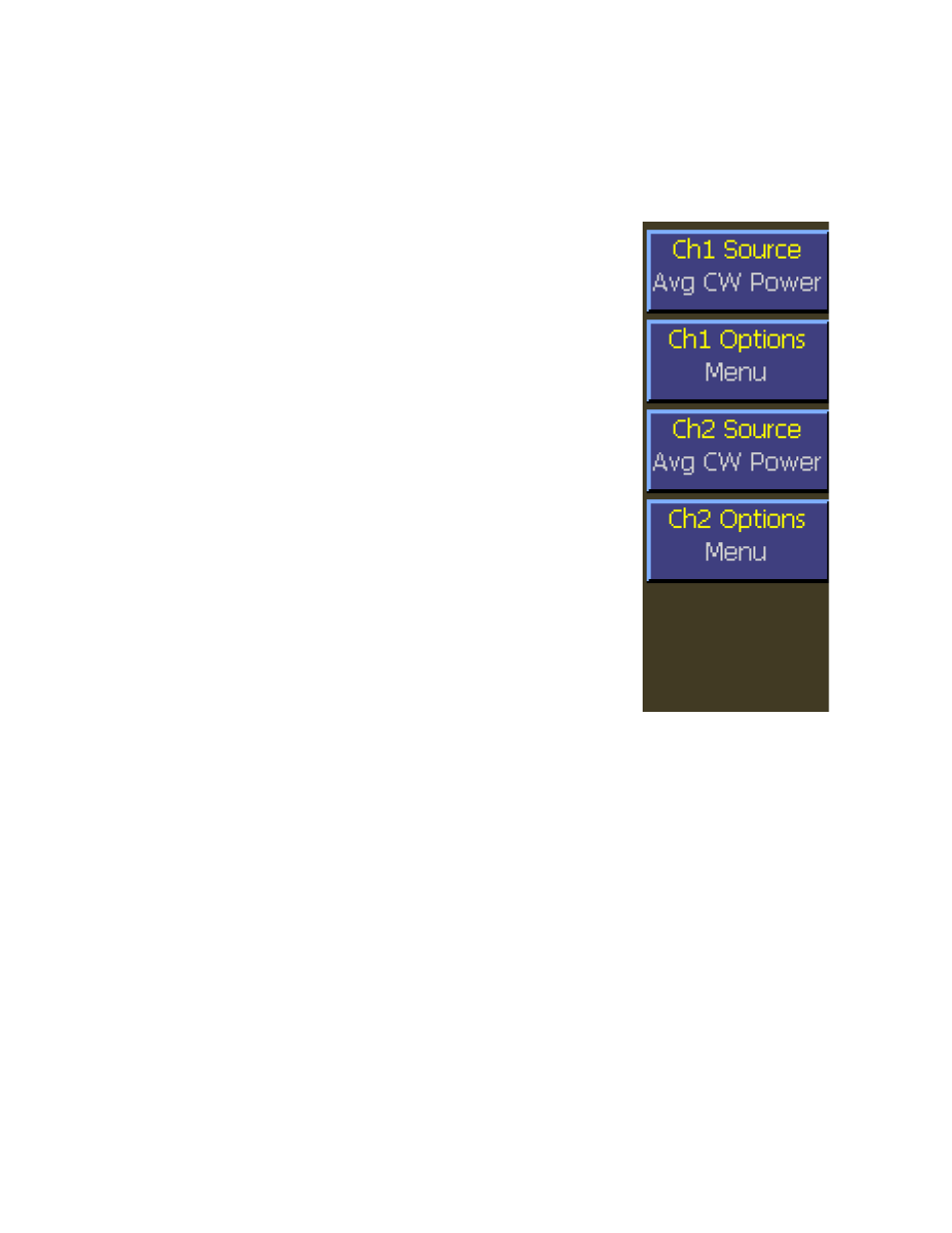

Fig. 4-43 Text Mode Menu
