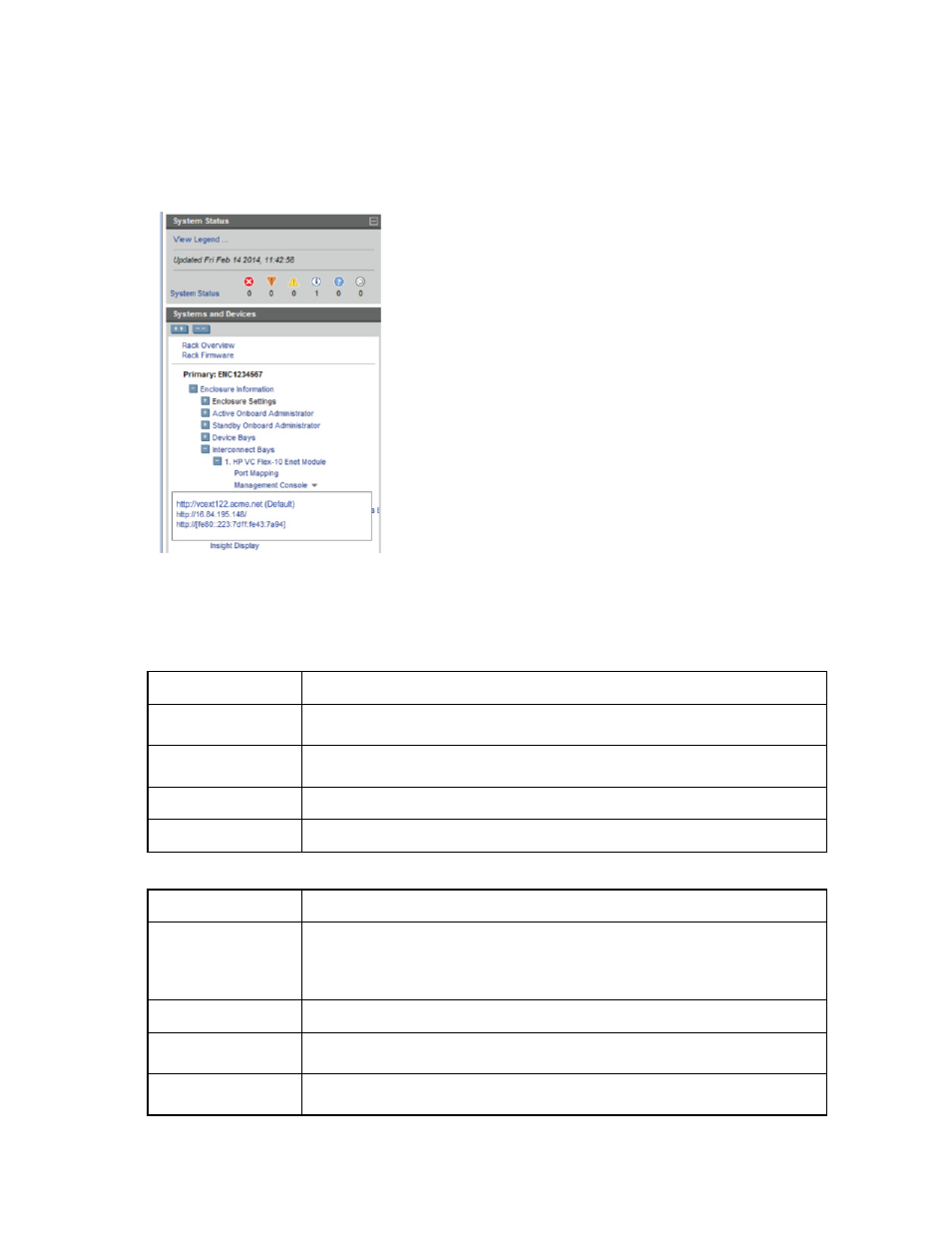

To connect to the Management Console, click the Management Console link. To view available Management
Console address links (IPv4 and IPv6), click the down arrow alongside the link. You can also connect to the
Management Console from the navigation tree, as shown in the following figure. In either case, when FQDN
link support is enabled and certain DNS configuration requirements are met, an FQDN-based address
displays as the default link. For more information about enabling FQDN link support, see the "Network
Access (on page 114 )" page.
To display port mapping information on the interconnect bay you have selected, click the Port Mapping
Interconnect link. The port mapping information can also be selected from the navigation tree.
Status information
Row Description
Status The overall status of the interconnect device. Possible values are Unknown, OK,
Degraded, and Failed.
Thermal Status The thermal status of the interconnect device. Possible values are Unknown, OK,
Degraded, and Failed.
Powered The power state of the blade. Possible values are On, Off, or Delayed.
Power Delay Remaining The number of seconds remaining before the device powers on.
Diagnostic Information
Row Description
Device Identification
Data Information such as model name, part number, serial number, and other information
used to identify the device is checked. This data is also referred to as FRU data. If the
data is not present or not readable by the Onboard Administrator, a device
identification data error displays. Possible values are OK or Error.
Management Processor Management processor is not responding. Possible values are OK or Error.
Temperature Temperature is above the warning threshold. Possible values are OK or Temperature
Warning.
Overheat Check
Temperature is above the danger threshold. Possible values are OK or Critical
temperature threshold reached.
