HP Onboard Administrator User Manual
Page 145
Configuring the HP BladeSystem c7000 enclosure and enclosure devices 145
You can initiate an unattended operating system deployment on the Insight Display. To begin the installation
process, connect the DVD/CD-ROM drive, and then reboot the server. Insert the DVD or CD into the
DVD/CD-ROM drive. The Insight Display Health Summary displays a status of green, indicating that media
is inserted in the drive. You can only connect blades to the DVD drive after media is inserted. Performance
might vary as the number of blades is increased.

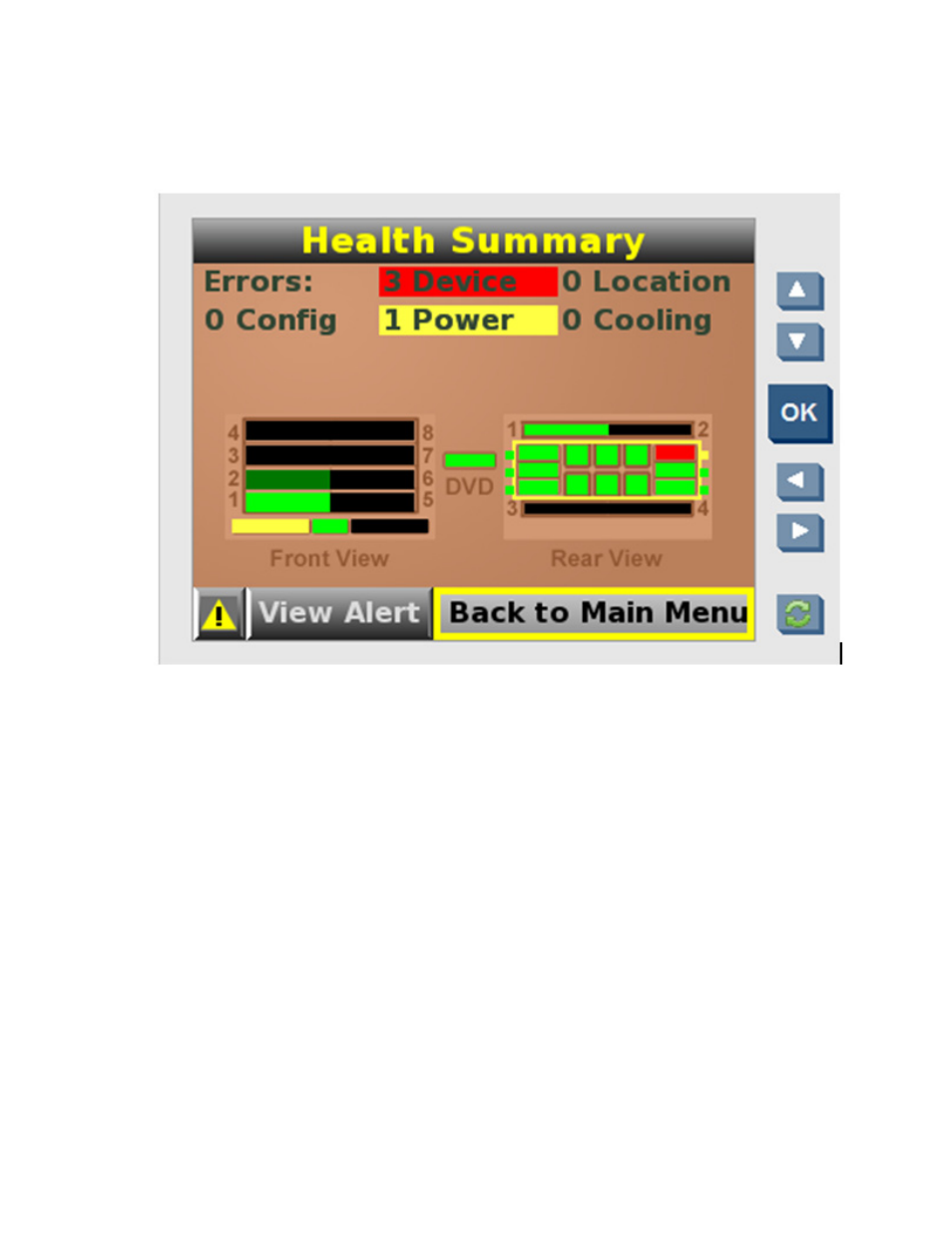

The Insight Display displays the DVD/CD-ROM drive status on the Health Summary screen as a DVD icon
with one of the following colors:
•
Black—No drive present
•
Light gray—Drive present, but no media present
•
Dark green—Disconnected media present
•
Light green—Connected media present
The Insight Display Main Menu enables you to connect blades to the DVD/CD-ROM drive and then reboot
the blades.
