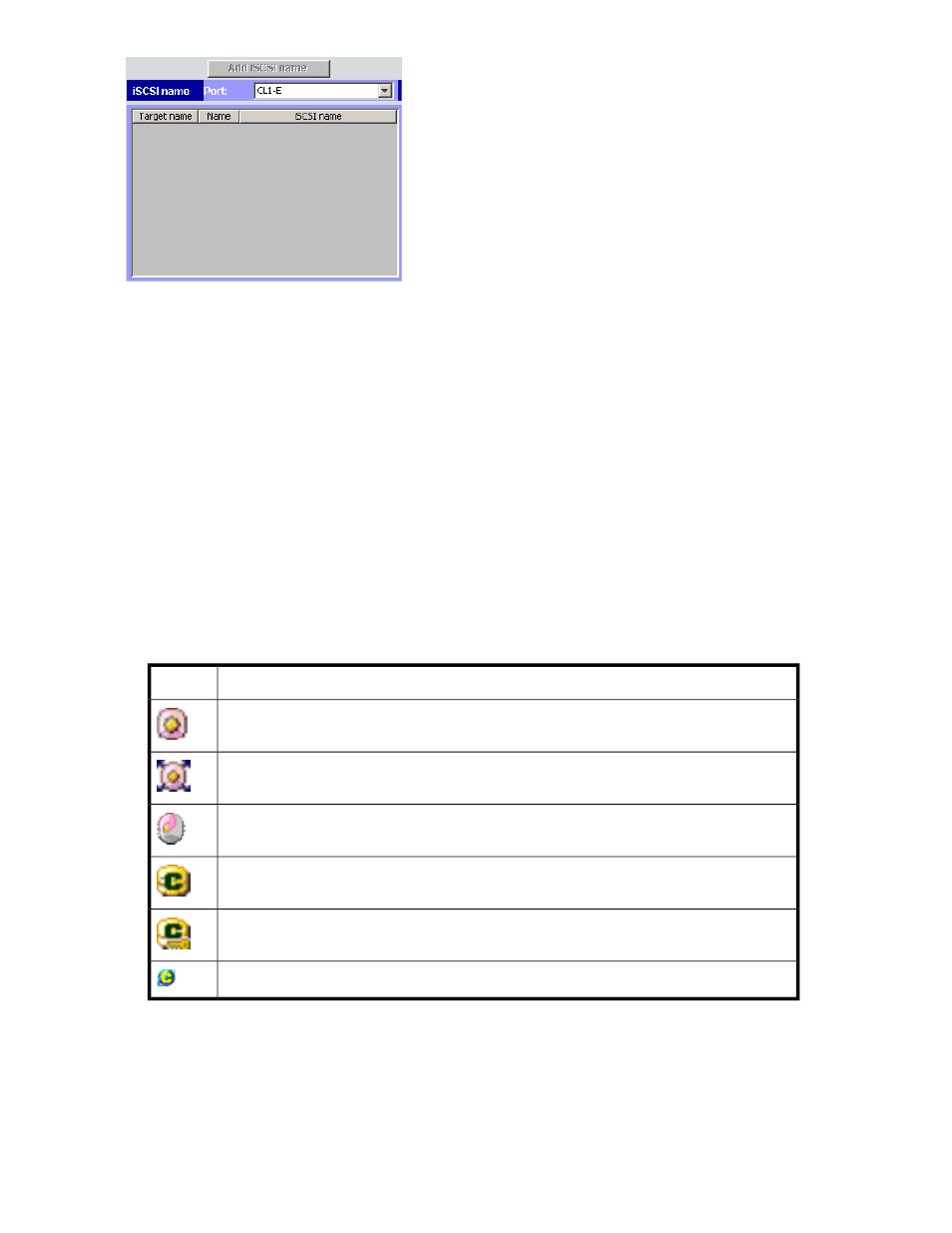

Figure 20 iSCSI name table
.
• Port: List of ports.
• Target name: iSCSI targets are used to classify server hosts connected to the array. You must create
iSCSI targets in the XP LUN Configuration and Security Manager Software pane.
• Name: Host bus adapter's nickname. You can specify nicknames in the XP LUN Configuration
and Security Manager Software pane.
• iSCSI name: Host bus adapter's iSCSI name.
LDEV table
Lists logical volumes in the array.
• CU: List of CU images.
• LDEV: Logical volumes. The CU image number appears on the left of the colon. The LDEV number
appears on the right of the colon. The combination of a CU image number and an LDEV number
identifies a logical volume.
Table 10 LDEV status icons
Status Icon
Normal logical volume
Expanded LU (that is, a LUSE volume)
Volume the Customized Volume feature is applied to (that is, a CVS volume)
Command device
Command device security
Remote command device
If an LDEV number ends with #, the logical volume is an external LU.
If an LDEV number ends with V, the logical volume is a virtual volume.
• Emulation: Logical volume's emulation type.
