3. Right-click any point in the Port Information list, and select Port Information. The Set Port
Information pane appears.

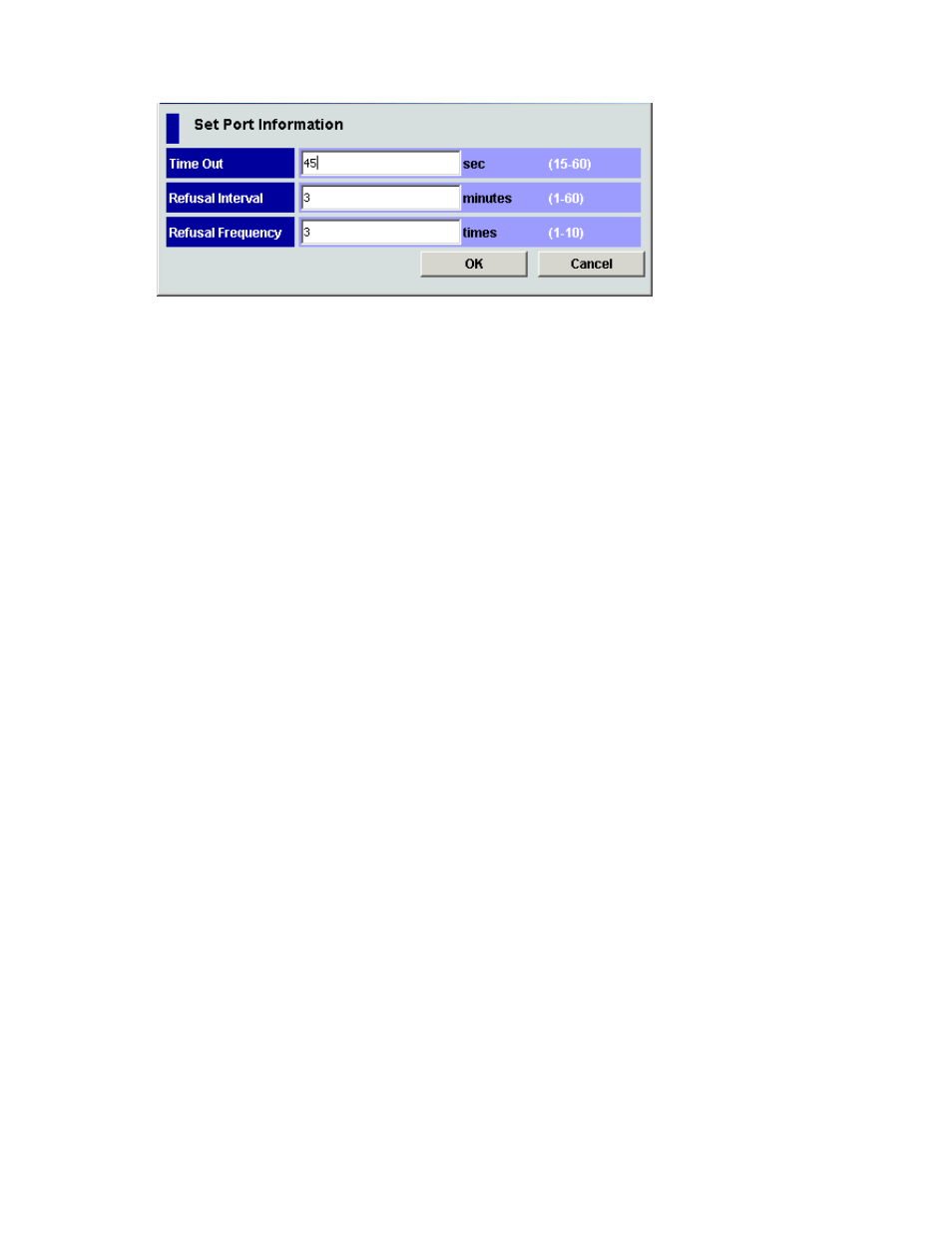

Figure 67 Set Port Information pane
.
Specify the following port information:
• Time out: Time period starting when authentication fails and ending when the next authentic-
ation session ends. This time period is between 15 to 60 seconds. The initial value is 45
seconds.
• Refusal Interval: Interval beginning when the connection to a port fails and ending when the
next authentication session starts, up to 60 minutes. The initial value is 3 minutes.
• Refusal Frequency: Number of times authentication for connection to a port is allowed, up to
10 times. The initial value is 3 times.
4. Click OK.
5. Click Apply. A confirmation message appears.
6. Click OK. Settings are applied to the array.
Registering a Fibre Channel port's user information
1. Start XP LUN Configuration and Security Manager Software, and display the Authentication pane
(
Figure 30 ).
2. In the Port tree, double-click the Subsystem folder. If the array contains Fibre Channel adapters,
the Fibre folder appears below the Subsystem folder.
3. In the Port tree, double-click the Fibre folder. Information about the port appears in the tree.
XP LUN Configuration and Security Manager Software operations 134
