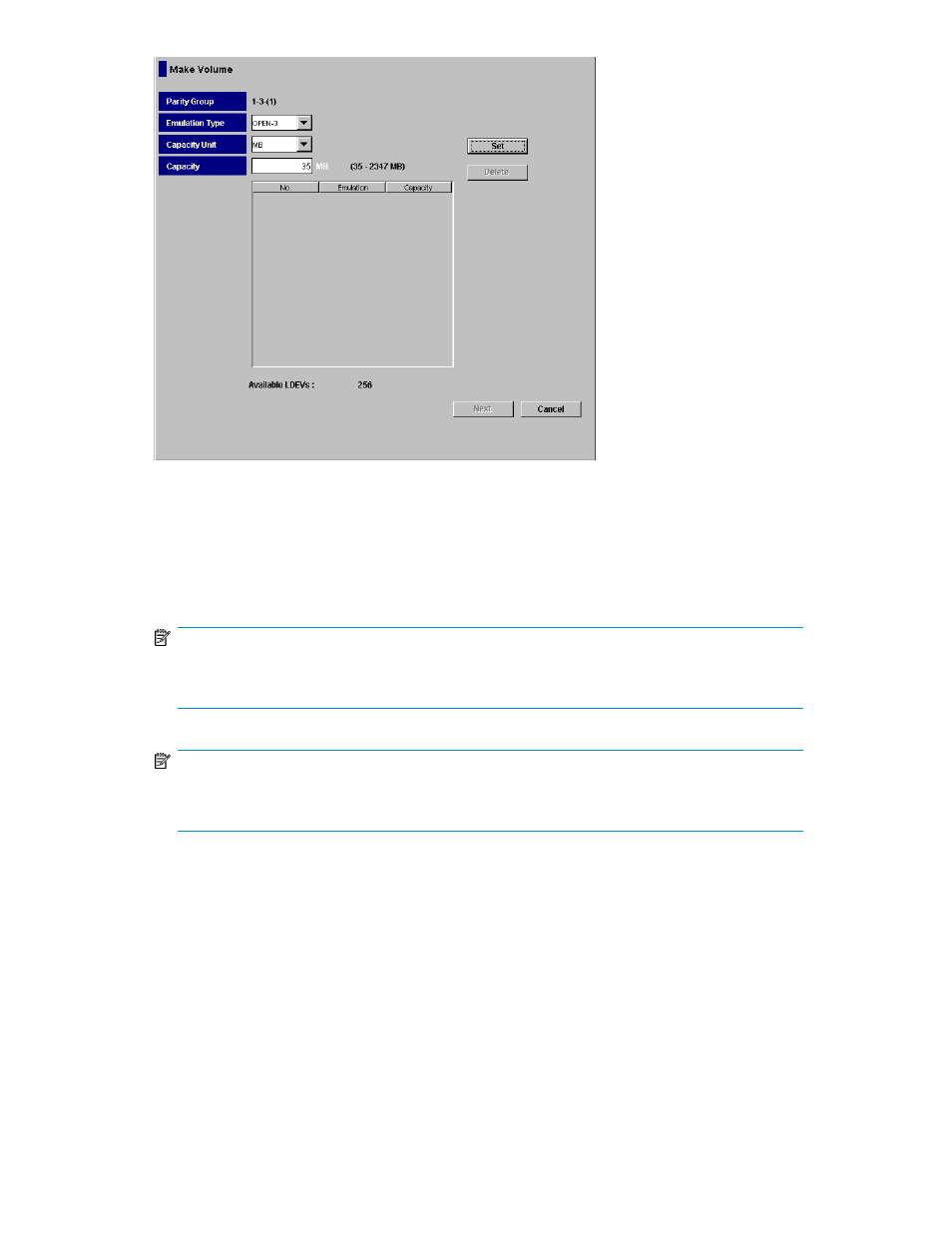

Figure 98 Make Volume pane (1) for other than OPEN-V
.
This pane has the following features:
•
Parity Group: Selected free space's VDEV number. The VDEV number indicates the parity group
where the VDEV belongs. For example, if VDEV number 1-1-(1) appears, the VDEV belongs to
parity group number 1-1.
NOTE:
If a parity group number starts with E (for example, E1-1), the parity group consists of one or
more external LUs.
NOTE:
If a VDEV number starts with V (for example, V1-1-(1)), the VDEV belongs to a parity group that
consists of one or more virtual volumes (V-VOLs).
•
Emulation Type: Emulation type.
•
Capacity Unit: Unit (MB, Cyl, or block) used to display the volume capacity.
•
Capacity: Capacity of the CVS volume in the unit selected in the Capacity Unit list. The available
capacity range (minimum - maximum) is shown on the right (for example, 46 - 6720 MB, 50 -
7168 Cyl, or 315 - 8513 blocks). The value can be incremented by 1 MB, cylinder, or block.
•
Set: Displays the selected settings in the LDEV information table on the left.
•
Delete: Deletes the settings of CVS volumes selected in the LDEV information table.
•
LDEV information table: Displays the following information about the CVS volume settings:
• No.: CVS volume's setting number.
• Emulation: CVS volume's emulation type.
