Installation and Operating Instructions OPTIMASS 52
4 Programming the Converter MFC 050/051

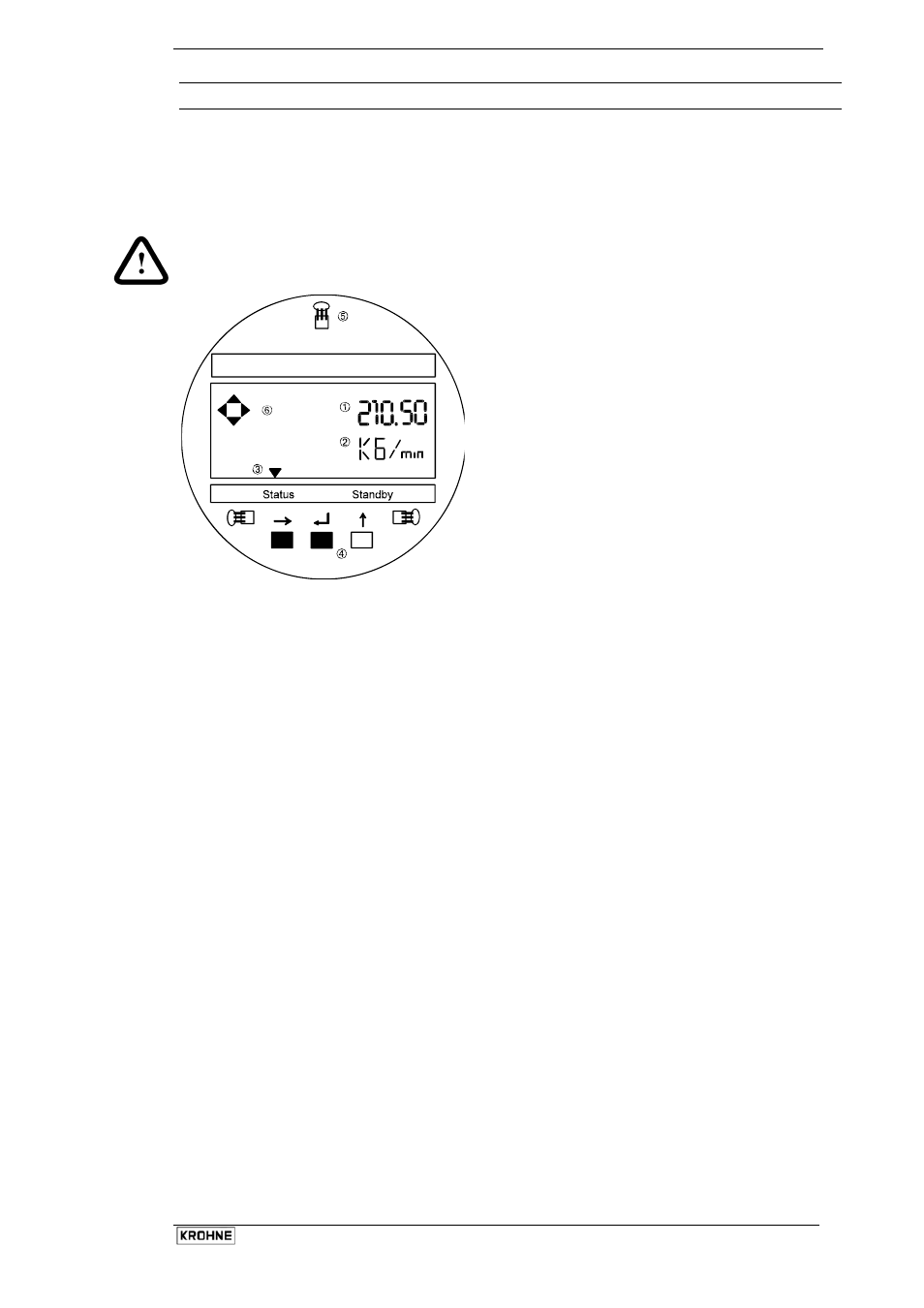

4.1 Operating and check elements
The operating elements are accessible after removing the cover of the electronics section using the
special wrench. The converter is also programmable with magnetic sensors and a bar magnet without
removing the covers of the electronic housing.
Caution:
Do not damage the screw thread and the gasket, never allow dirt to accumulate, and make sure they are
well greased at all times.
1 Display 1st (top) line
2 Display 2nd (middle) line
3 Display 3rd (bottom) line:
arrows (▼) to identify the state of the signal
converter
• Status message indicator
• Standby mode
4 Keys for operator control of the signal
converter.
5 Magnetic sensors to set the converter by
means of a handheld bar magnet without
opening the housing. Function of sensors
same as keys (4).
KROHNE MFC 50
6 Compass field, signals actuation of a key.
The operator control concept consists of five levels (horizontal). See next page.
Setting level:
This level is divided into 5 main menus:
Fct. 1.0 OPERATION:
This menu contains most important functions for
adjustment and calibration.
Fct. 2.0 TEST:
Test menu for checking the signal converter (displays, outputs,
measuring range) and meter diagnostics.
Fct. 3.0 CONFIG:
All flow measurement- and flowmeter-specific parameters
and functions can be set in this menu.
Fct. 4.0 I.O. CONFIG:
The configuration of the outputs, input, communication
and the system control can be set in this menu.
Fct. 5.0 FACTORY.SET:
All meter related factory settings and meter constants
can be monitored in this menu.
Reset/acknowledge
level (Quit): This menu has two tasks and is selected via Entry Code 2 ( ↵ ↑ → ).
• Resetting of totalizer, provided that resetting is enabled under
Fct. 3.5.3 ENABL.RESET, input YES.
• Status message and acknowledgement (Quit) messages that have occurred
since the last acknowledgement are indicated in a list.
After elimination of the cause(s) and acknowledgement, these messages
are deleted from the list.
