Installation and Operating Instructions OPTIMASS 32

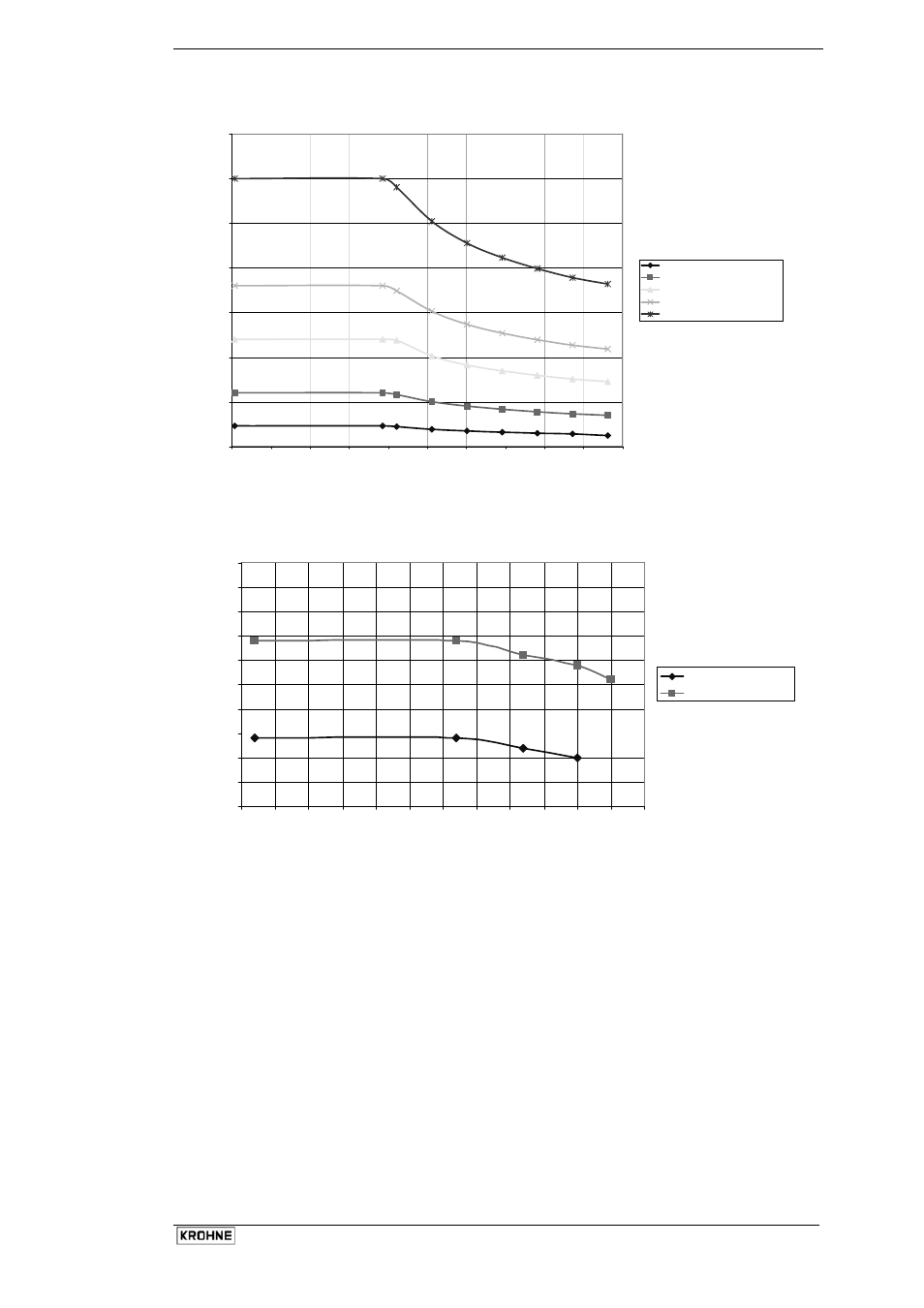

ANSI flanges to ASME B16.5. Note also pressure / temperature limits for measuring tubes above.
0
500
1000
1500
2000
2500
3000
3500
-300 -200 -100 0 100 200 300 400 500 600 700
Temperature ('F)
P
ressure
(
p
si
) Flange ASME B16.5 Class 150
Flange ASME B16.5 Class 300
Flange ASME B16.5 Class 600
Flange ASME B16.5 Class 900
Flange ASME B16.5 Class 1500
JIS flanges to 2220 B. Note also pressure / temperature limits for measuring tubes above.
0
5
10
15
20
25
30
35
40
45
50
-200 -150 -100 -50 0 50 100 150 200 250 300 350 400
Temperature ('C)
P
re
ssu
re (
b
ar)
Flange JIS B 2220 10K
Flange JIS B 2220 20K
Hygienic and sanitary connections (all sizes)
Maximum pressure: 10 barg at 150°C or 145 psig at 302°F
Maximum pipe work forces
Forces exerted on the meter from the process pipe are not permitted. Mechanical installation should be
designed to prevent such forces.
