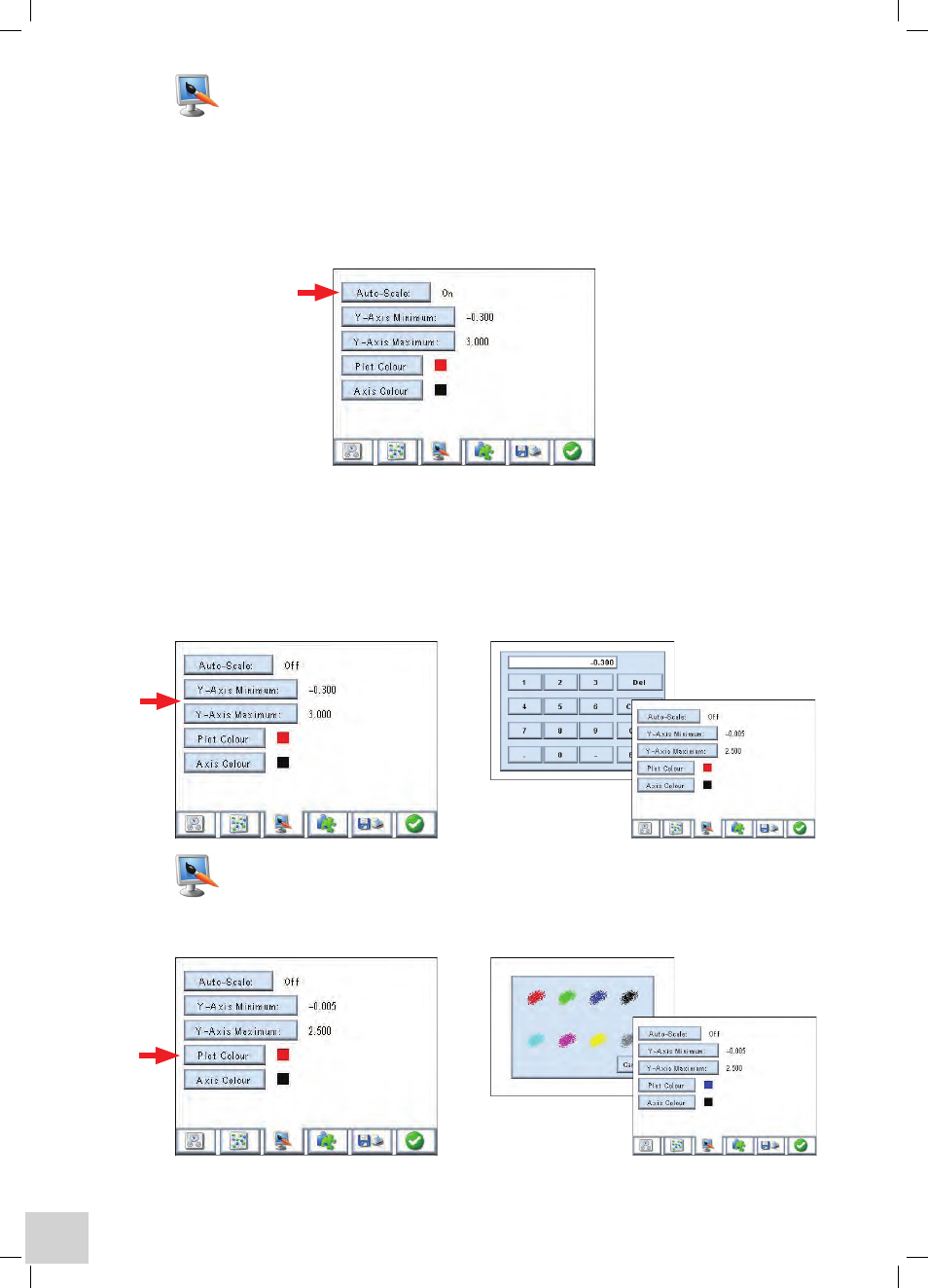

Setting Auto-Scale
The
Auto-Scale key toggles between On and Off. With the Auto-Scale function On the instrument
will automatically set the Y-axis maxima to a level that will fit the largest peak and lowest valley in the
display area. This is the best option to choose if the user is uncertain of the limits of the scan.
When set to
On the manual settings for Y-axis maximum and minimum are non-functional. These
settings can be changed with
Post Scan analysis tools to enable alternative views and printouts after
the scan has been completed.
With the
Auto-Scale function set to Off the Y-Axis Minimum enables the lowest displayed level for
the Y-axis to be manually set. Select the
Y-Axis Minimum key and a numeric keypad will be displayed
for entry of this value. This value can be between –0.301 and 2.999.
The
Y-Axis Maximum enables the highest displayed level for the Y-axis to be manually set. Select the
Y-Axis Maximum key and a numeric keypad will be displayed for entry of this value. This value can
be between 3.000 and –0.300.
Selecting Plot Colour
Selecting the
Plot Colour key displays a colour selection screen. Touch any one of the eight colours to
select the preferred plot colour. Once selected, the screen will update to show the selected colour.
