Jenway 6715 User Manual
Page 160
142

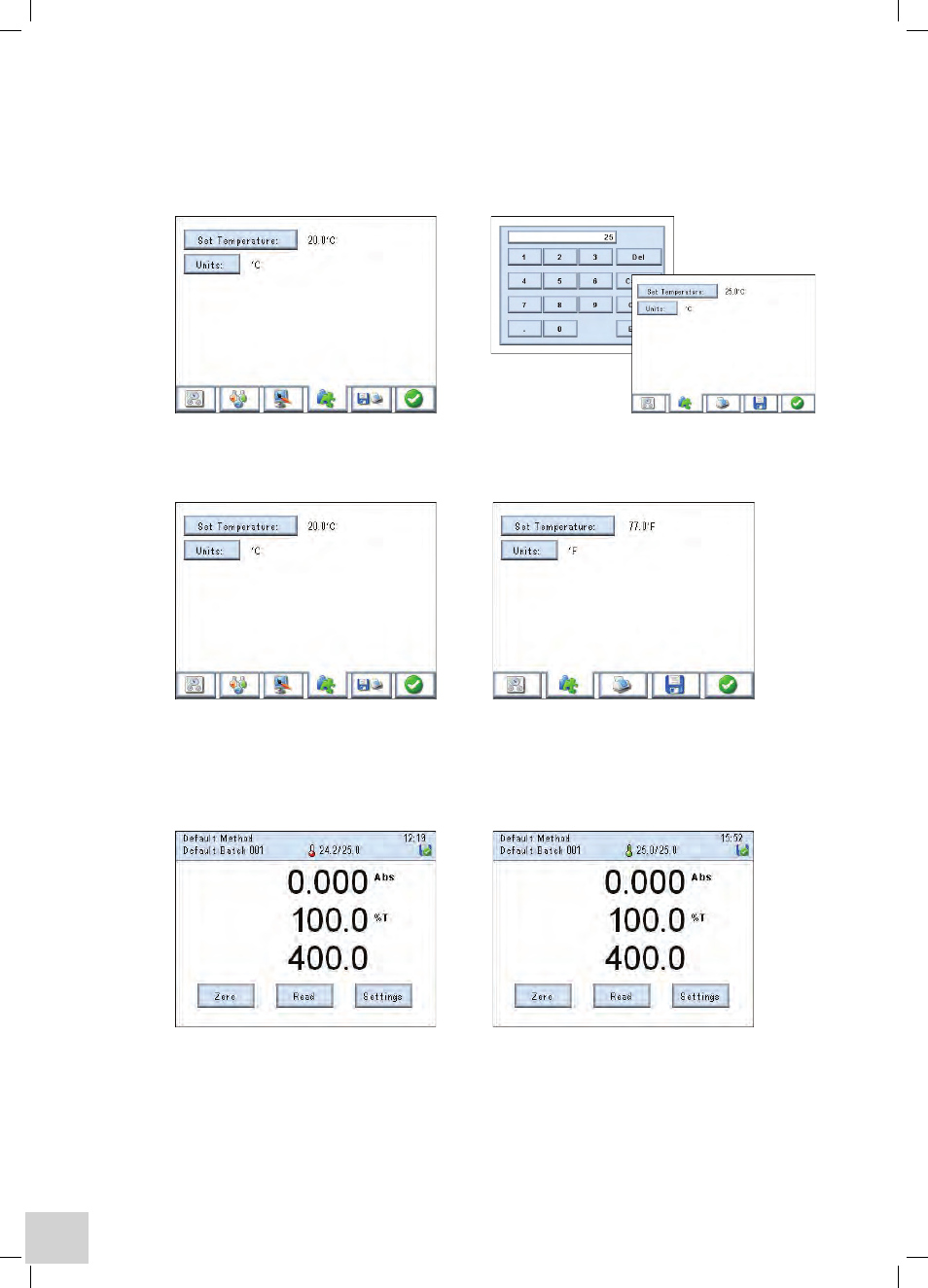

Setting temperature
To set the required temperature select the
Set Temperature key and enter the value using the
numeric keypad. The
Clear key will clear all information entered on the screen. The Del key allows
individual digits to be removed. The
Cancel key will return you to the previous menu. The Enter key
accepts the new value and returns you to the previous screen.
Selecting Units
The
Units key toggles between °C and °F.
operating Display
A red thermometer icon indicates heating or cooling is in progress, a green thermometer shows the
actual temperature is within ±0.5 degrees Celsius of the set temperature the displayed data is ‘actual
temperature/set temperature’.
Specification
Temperature Range: 20 to 50°C or 68 to 122°F
Temperature Resolution: 0.1°C or 1°F
Accuracy: ±0.5°C
Stability: ±0.3°C
Red/Green Window: ±0.5°C
