Jenway 6715 User Manual
Page 14

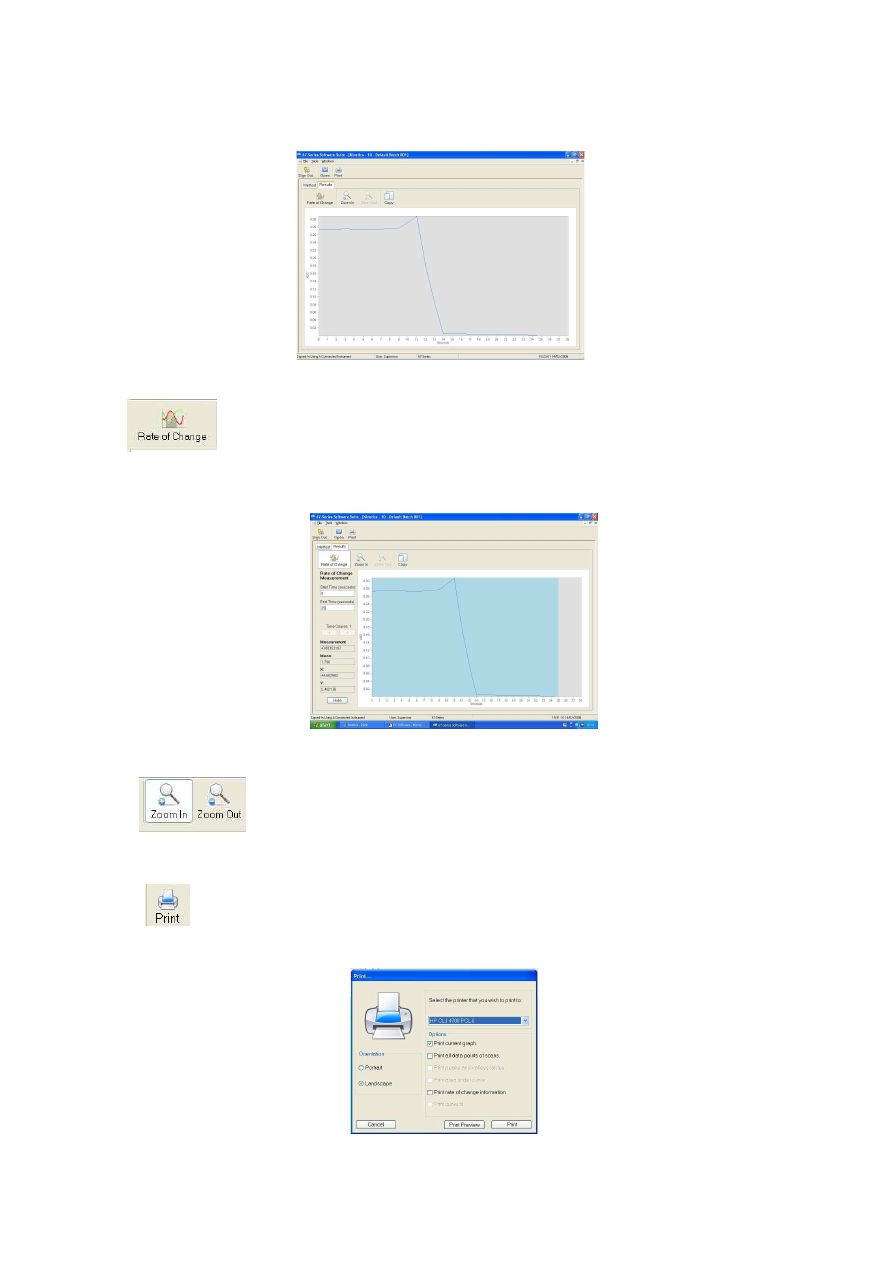

The Results tab displays the chosen result.
Selecting the rate of change icon displays the following screen. Entering the
required Start Time and End Time automatically updates the Measurement,
Mean, X and Y calculations.
Alternatively holding down the left mouse button and dragging over the desired
area edits the Start Time and End Time. To return to the original Result tab
screen select Hide.
Selecting the zoom in icon displays the green ‘zoom area’ on the spectrum.
Placing this over the desired area and clicking the left mouse button will
zoom in to the green highlighted area. This process can be repeated up to
four times. Once zoomed in it is possible to return to the previous zoom
level by selecting the zoom out icon.
Selecting the print icon opens the Print box. This allows the user to choose the
printer, the orientation of the printout, what data is displayed on the printout and
gives the option of printing directly or viewing a Print Preview.
