Fitting the Sipper/Peltier Module (as a separate accessory option)
This is supplied as a complete plug-in module as detailed above. If you are changing from an existing
sample chamber module to the sipper/peltier the following installation instructions should be used:
Disconnect the instrument from the mains supply.
Check the installed sample chamber module and remove any filled cuvettes to avoid spillage.
Raise the lid and loosen the sample chamber retaining screw located at the front of the module. Lifting
the front carefully remove the module from the instrument and store safely for possible future use.
Unpack the new module and check to ensure no damage has occurred during transit.

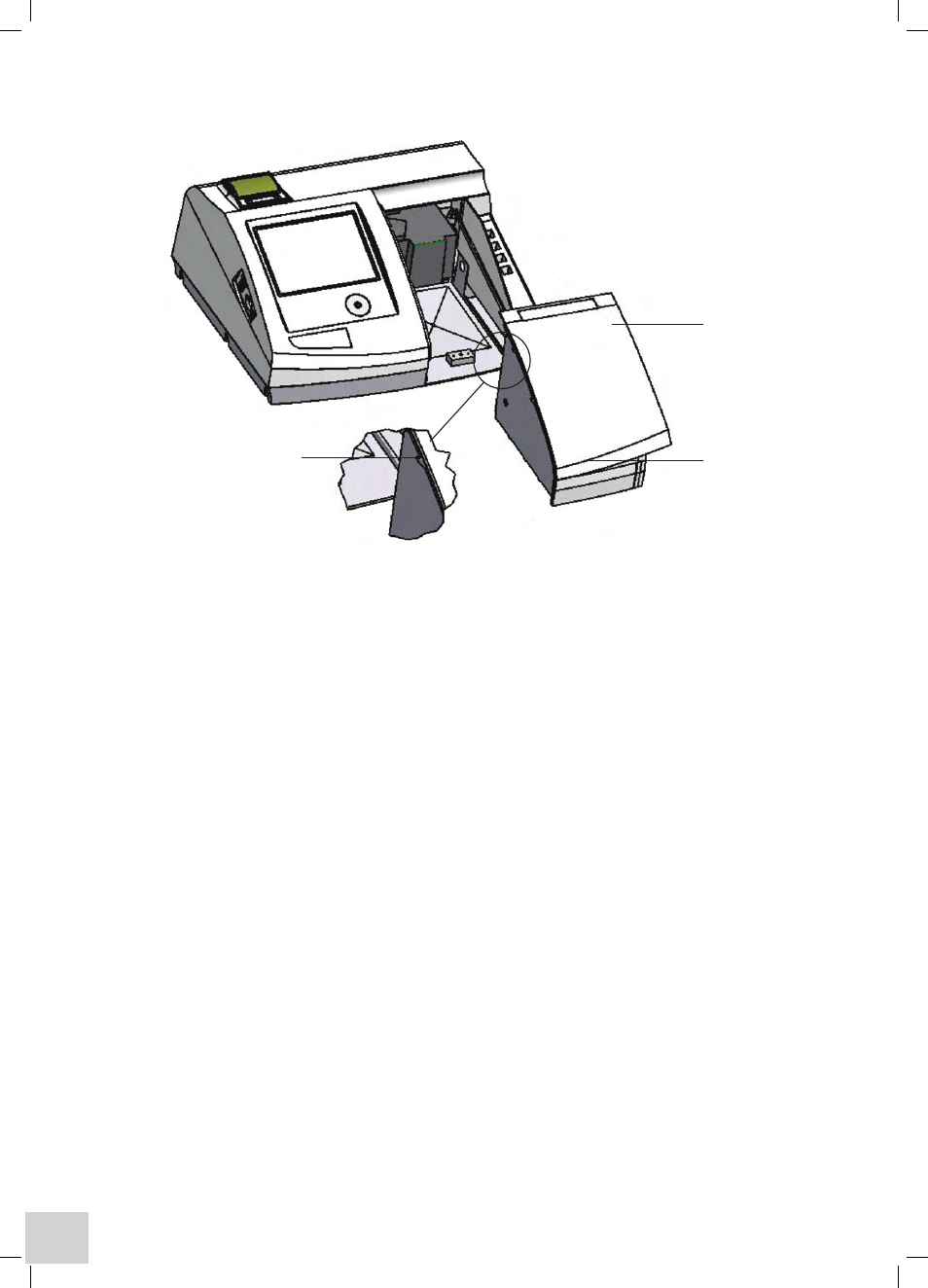

To install the new module raise the lid by 30° and gently ease it into the instrument compartment
taking care that the lugs shown in the diagram locate into the main casework.
Once the module is in position, tighten the sample chamber retaining screw.
Re-connect the mains supply to the rear panel of the instrument. Switch the instrument on using the
power switch located on the rear panel. The instrument is now ready for use with the new module.
Raise lid by 30°
for re-assembly
Ensure lugs locate
into main case
Sample chamber
retaining screw
