Jenway 6715 User Manual
Page 109
91

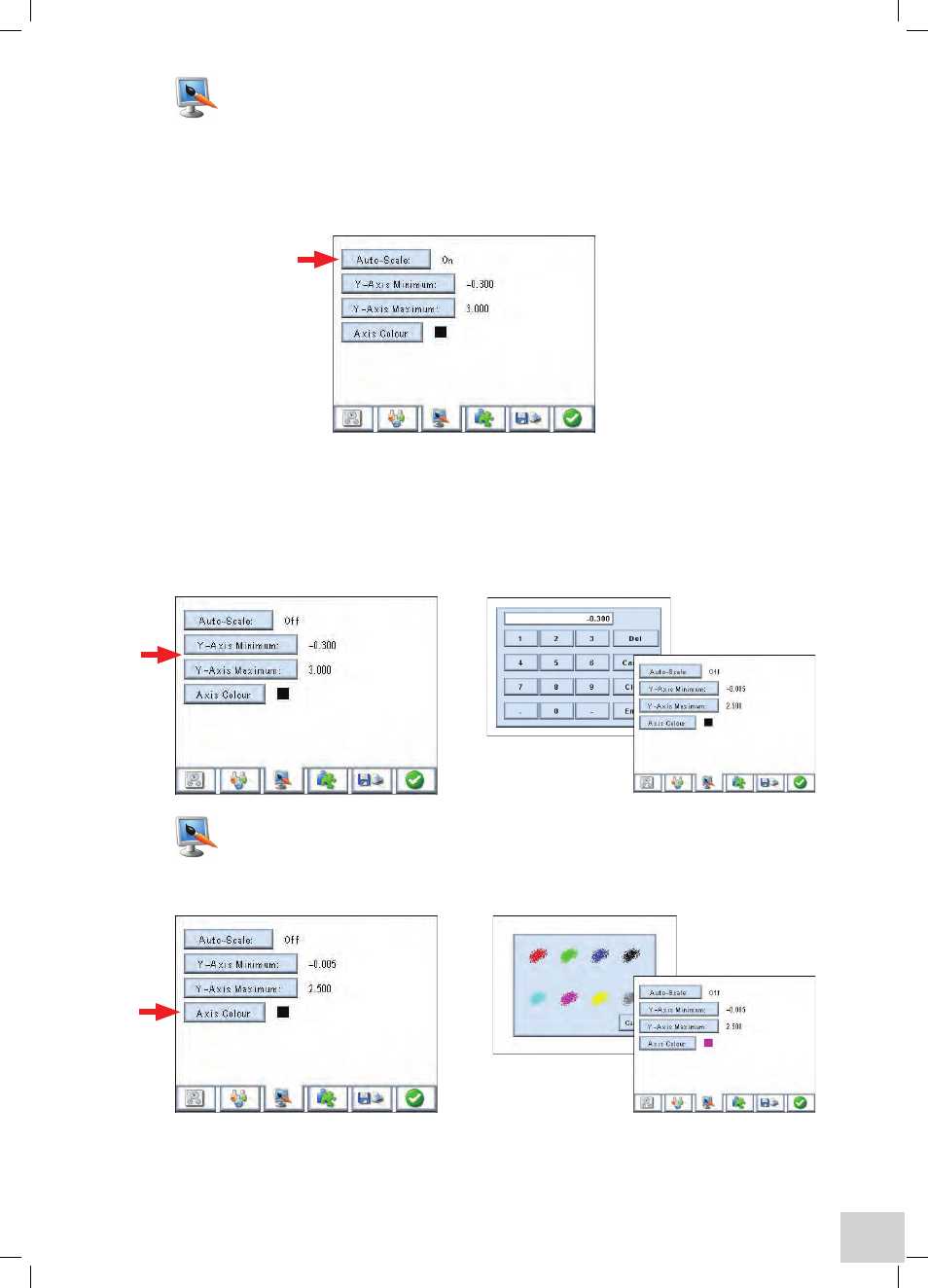

Setting Auto-Scale
The
Auto-Scale key toggles between On and Off. With the Auto-Scale function On the instrument
will automatically set the Y-axis maxima to a level that will fit the graph of the kinetics run. When set
to
Off the manual settings for Y-axis maximum and minimum are non-functional. These settings can
be changed with post run analysis tools to enable alternative views and printouts after the run has
been completed.
With the
Auto-Scale function set to Off the Y-Axis Minimum enables the lowest displayed level for
the Y-axis to be manually set. Select the
Y-Axis Minimum key and a numeric keypad will be displayed
for entry of this value. This value can be between –0.301 and 2.999.
The
Y-Axis Maximum enables the highest displayed level for the Y-axis to be manually set. Select the
Y-Axis Maximum key and a numeric keypad will be displayed for entry of this value. This value can
be between 3.000 and –0.300.
Selecting Axis Colour
Selecting the
Axis Colour key displays a colour selection screen. Touch any one of the eight colours to
select the preferred colour. Once selected, the screen will update to show the selected colour.
