108

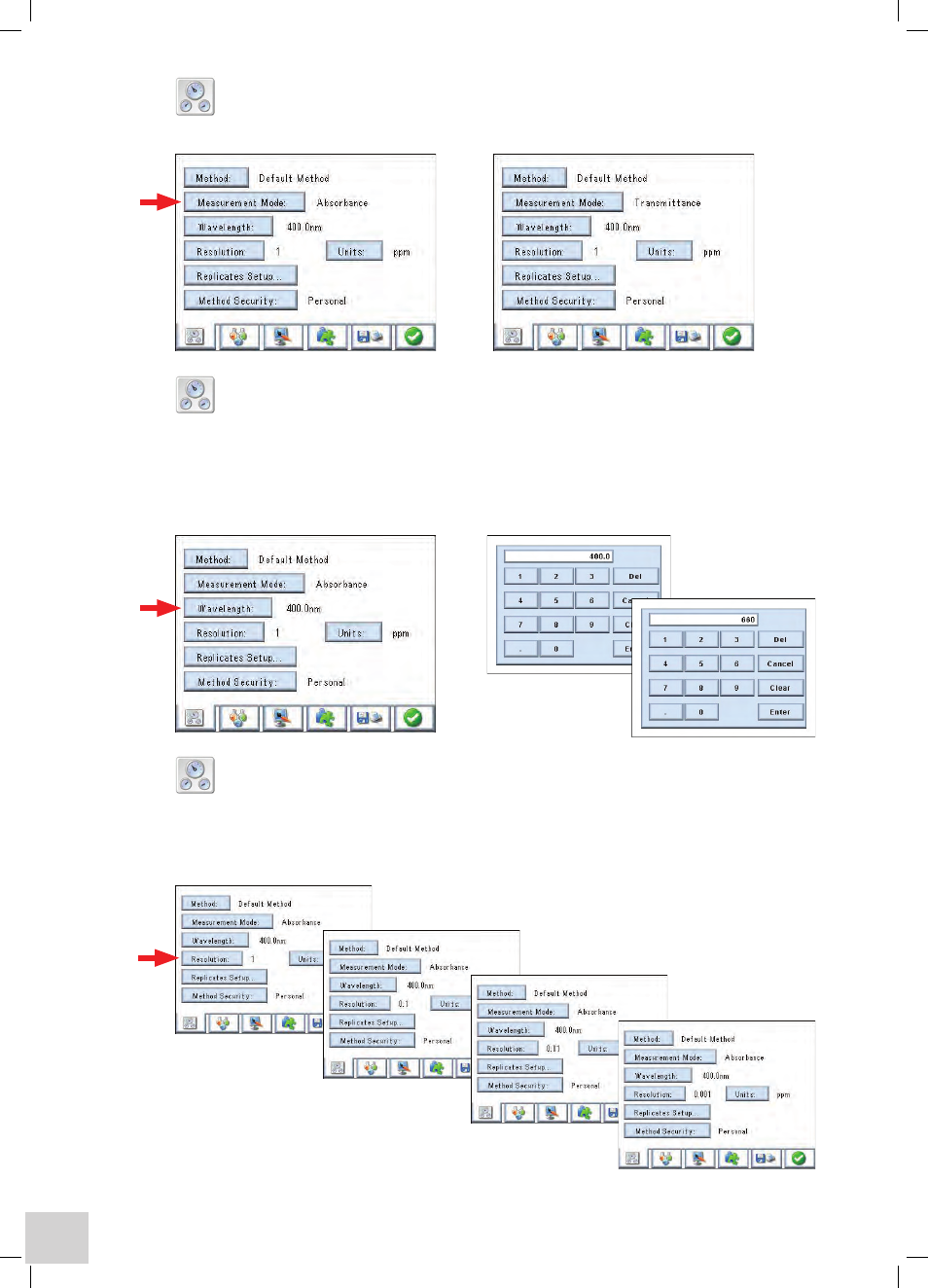

Selecting Measurement Mode

The

Measurement Mode key toggles between Absorbance and Transmittance.

Setting Wavelength

Select the

Wavelength key and enter the wavelength using the numeric keypad. The Clear key will

clear all information entered from the screen. The

Del key allows individual letters or digits to be

removed. The

Cancel key will return you to the previous menu and the wavelength will not alter. The

Enter key accepts the new wavelength and returns you to the previous menu. (At certain wavelengths
order selecting filters may be heard switching in or out).

Selecting resolution

This enables the resolution of the result to be set. Resolution can be set using the

Resolution key to

scroll through the available options.

Resolution options are: 1, 0.1, 0.01 and 0.001.
