reAr PAnel lAyoUt
Power Switch
On/Off switch for the unit.
Power In Socket
IEC type connection socket for the mains supply cable.
Printer Socket
25 way Centronics parallel output socket compatible with Postscript printers.
Analogue Output
2 x 4mm pin sockets for analogue devices.
USB Socket
type B connector for communication to PC.
SD Card Socket
will accept 128MB to 2GB SD or Multi-media memory cards.

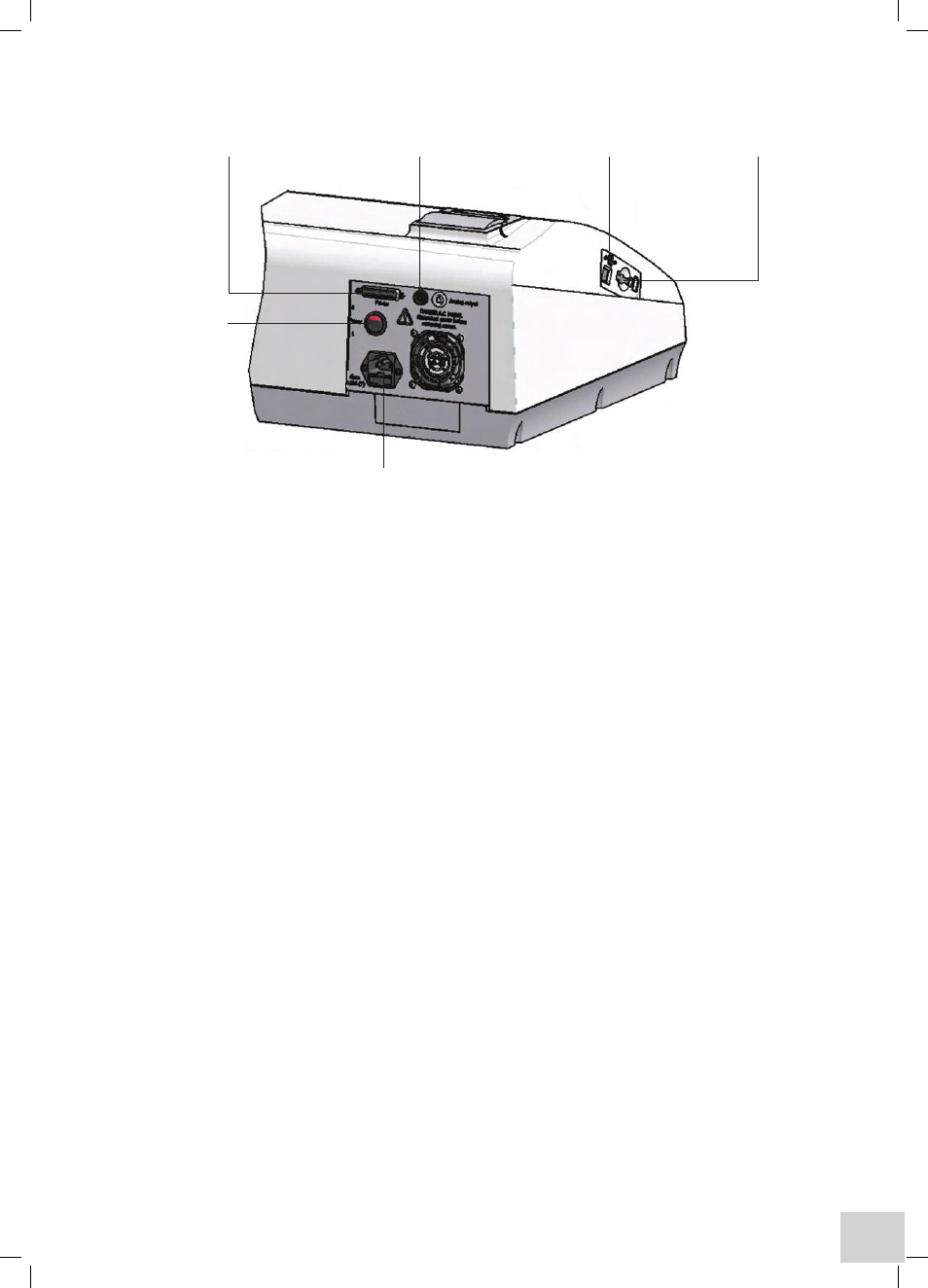

Printer socket
USB Socket
Analogue O/P
SD Card Socket
Power
switch
Power in socket
