GPT-9000/9000A Series User Manual
42
Setting the Test Voltage or Test Current
Background The test voltage can be set from 0.100kV to 5kV
for ACW, 0.100kV to 6kV for DCW and 0.050 to
1kV for IR (50V steps*). For GB tests the test
current can be set from 3A to 30A (GPT-98XX)
or 3A to 32A (GPT-99XX).
*GPT-99XX/GPT-99XXA includes a 125V test
point.

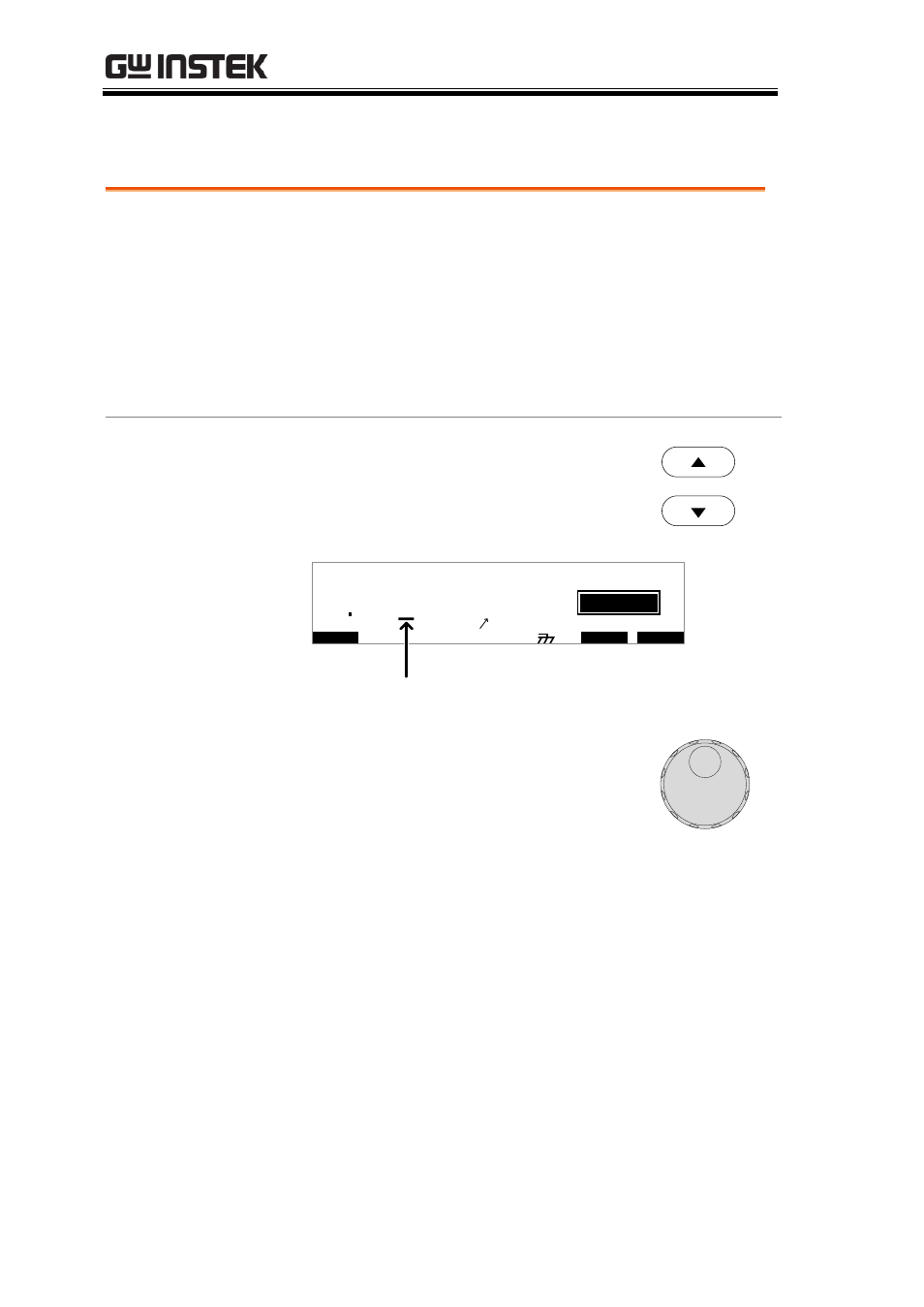

Steps 1. Press the UP / DOWN arrow keys
to bring the cursor to the voltage
setting.
I R G B A CW D CW I / L H O I M E T R
E
F R E Q = 0 H z 6
0 100
k V
I D E
M T I E = 0 0 1 . 0 S R
0 0 m A E R F = # 0 . 0 M M A U N N A _
1 . 0 0 m A I H E S = 0 T
0 0 . 1 S 0 A M P = R
T
2 M A N U = * * * - 0 0
cursor
m A
2. Use the scroll wheel to set the
voltage level.
ACW
DCW
IR
GB 0.100kV ~ 5kV
0.100kV ~ 6kV
0.05kV ~ 1kV (50V steps)*
3.00A ~ 33.00A (GPT-98XX)
3.00A~ 33.00A (GPT-99XX)
*GPT-99XX/99XXA includes a 125V test point.
