APPENDIX

169

Continued…

Output Impedance

600kΩ

Window Comparator Method Yes
Rise-time Control Function

Yes

RAMP (Ramp Time)

0.1~999.9S

TIMER (Test Time)

1S~999.9S

GND

OFF


Ground Bond Test
Output Current Range

03.00A~30.00A (GPT-98XX)
03.00A~32.00A (GPT-99XX)

Output Current Accuracy

(1% of reading +0.2A) when 3A≤I≤8A

(1% of reading +0.05A) when 8A

(GPT-98XX)

(1% of reading +0.05A) when 8A

(GPT-99XX)

Output Current Resolution

0.01A

Frequency

50Hz/60Hz selectable

Ohmmeter Measurement
Accuracy

(1% of reading +2m

)

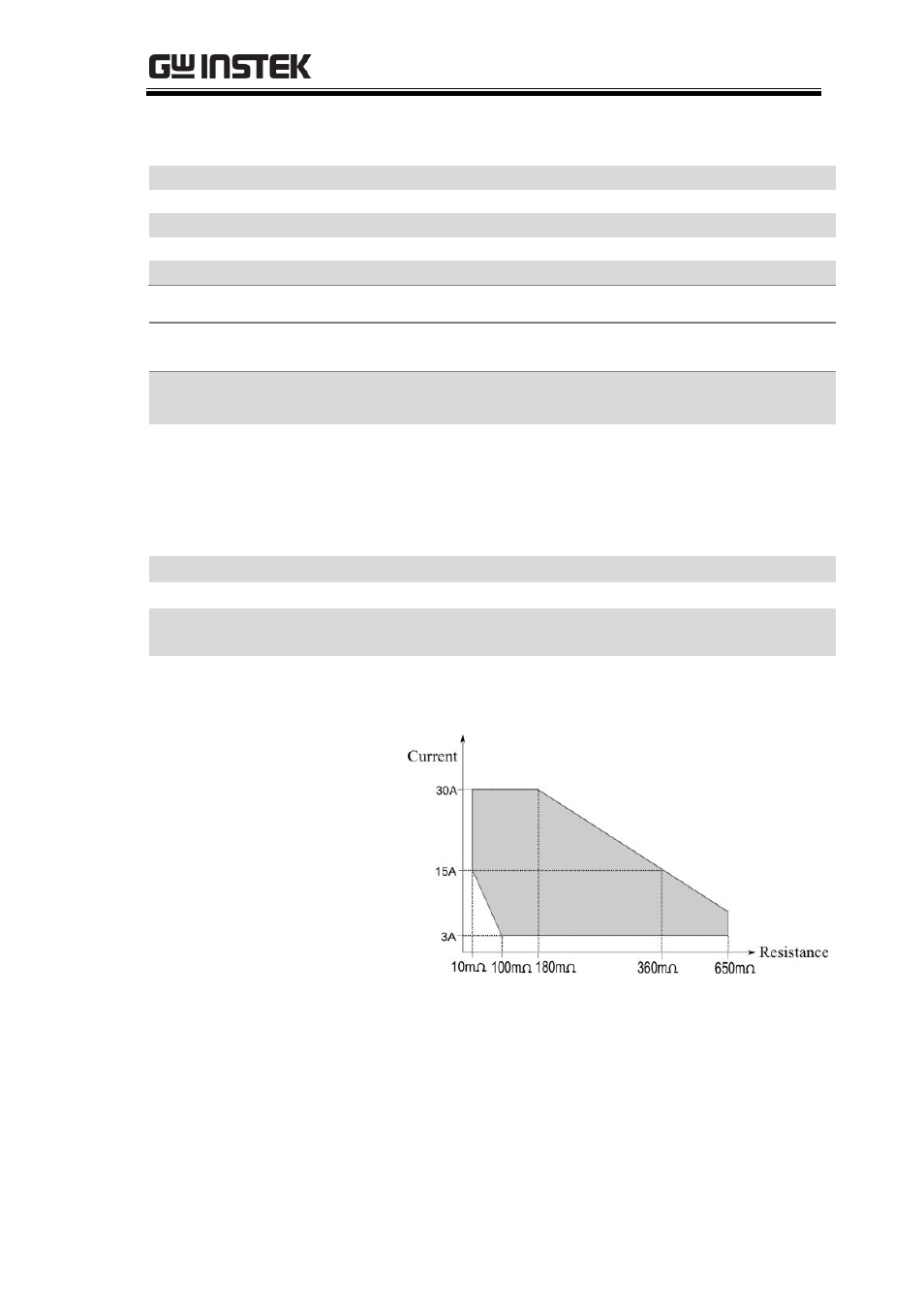

Ohmmeter Measurement
Range

10m

~650.0m

(depending on output current)


GPT-98XX:

Continued…
