Part No. 4801-5396 Rev. 5-08 Unitized System - Square Reservoir Page 8 of 63

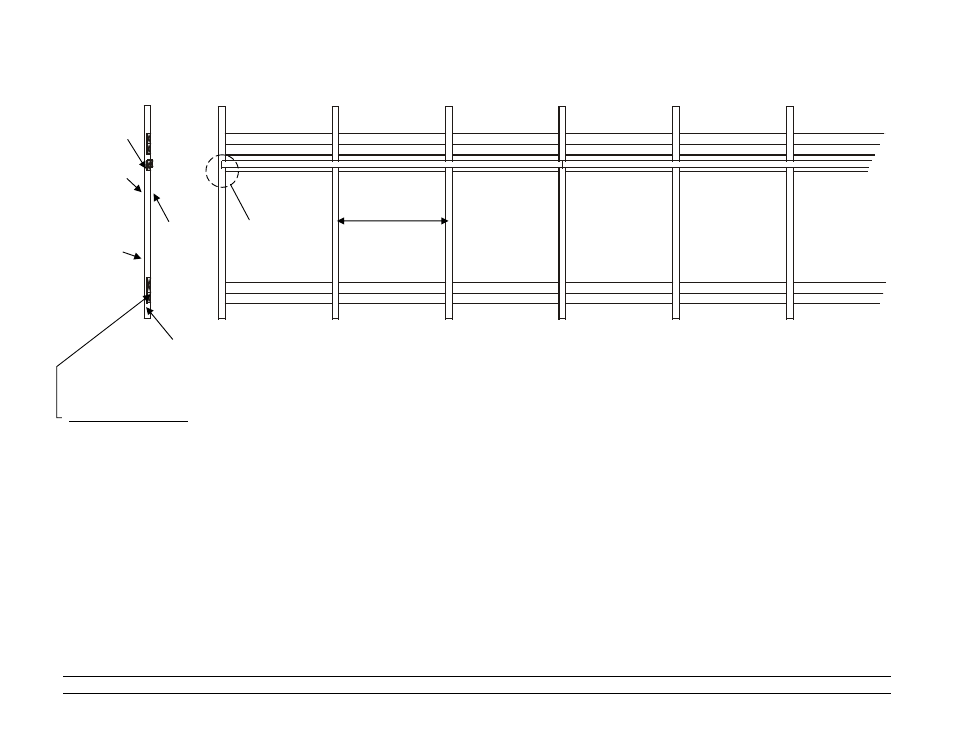

Front View
.
(2)*Pads available with 4 ft, 5 ft. or 6 ft. Heights.
Only use 6 in. thick Pads for Square Bottom System. 2”x8" and 2”x6"
board (or steel
equivalent)
4”x4"
post
(or steel
equivalent)
FILLER BOARDS
2”x6"and 1”x4" filler boards are necessary to
secure the top flashing to the wall.
2”x8"and 2”x6" filler boards are necessary to
secure the bottom flashing to the wall.
The bottom flashing serves as a splash-
guard and fills the gap for improved air flow.
(2) 2”x6” filler boards are necessary to
secure top brackets for SideWall Curtain
Assembly.
Fit filler boards in between posts.
1”x4"
board
(or steel
equivalent) Set posts on 60"
(1.5 m) centers
2”x6"
board
(or steel
equivalent)
Two 2”x6"
boards
(or steel
equivalent
)
Center the end of
the first 1x4 and
the last 1x4 on
the 4x4 post
Framing
1. Refer to the Page 7 Installation Cross-Section for the framing dimensions of
the pads you are installing.
2. Make opening in wall equal to the length of pad and the height of pad.
3. Frame the opening with treated lumber as shown above. Make sure the
boards are level and flush with the front side of posts as shown.
4. If using Water Tank option, add 5’ to bottom fillers to mount tank. See
page 10.
NOTES:
1.
Use steel equivalent to frame opening if installing Unitized system to steel
building.
2. In-Line Pump location will vary depending on setup option.
