Hired-Hand Unitized Mega Cool: Square Bottom - Manual (Page 10)

Part No. 4801-5396 Rev. 5-08 Unitized System - Square Reservoir Page 10 of 63
Splice
Support
RH
L-Bracket LH
L-Bracket
Water
tank
8 3/4"
16"
12" Typ
Extra length
of 5‘ runners
needed to
support
water tank.
4" Typ
58 1/4"
Typ

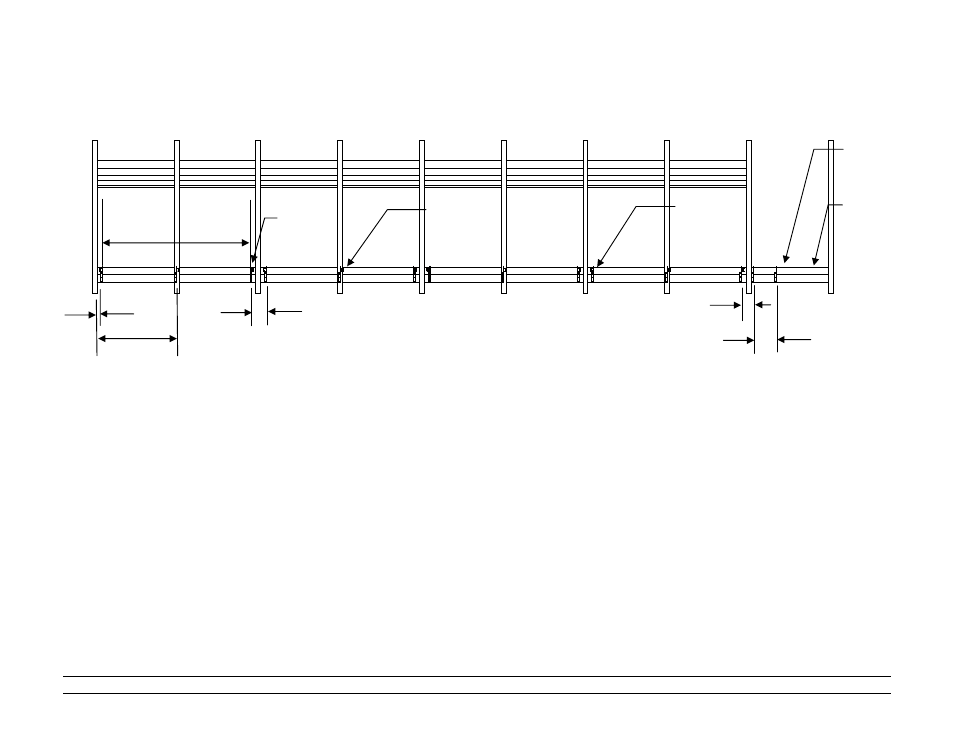

Front View
.
Water Tank with In-Line Pump – Mounted On End Only
1. Determine the height at which the bottom of the MegaCool system should be mounted above the ground. Make a
mark on each end post to represent the height.
IMPORTANT: The height of the bottom of the System should be a minimum of 9-1/2 inches above the ground in order
to elevate the pump above ground. Failure to do so may void the motor warranty.
2. Stretch a chalk line between marks of end posts and make line.
3. Align bottom edge of metal support bracket with chalk line distances shown above. Use 1/4" x 1-1/2" Lag screws
for wood framing, or, #14 x 1"Hex Head TEK screws for metal framing.
4. Assemble L-Brackets to support brackets as shown above with 1/4"-20 hex bolts and 1/4"-20 nuts.
108 1/4"
Typ
