Tubular Motor Tester Wiring Diagram
1. Disconnect all power sources.
2.
Wire motor according to diagram.
(Direction 1 refers to counter-clockwise rotation of motor as viewed from connection end of motor).
3. Connect
power.
4. Test
motor
5. Disconnect
electrical power.
6.
Remove test wires.

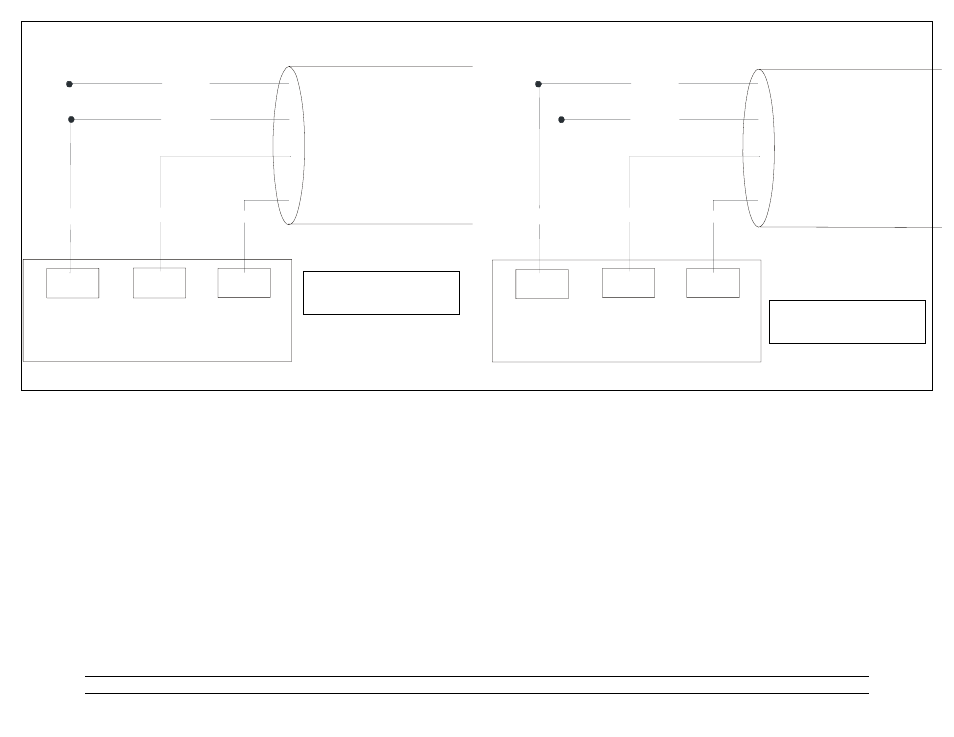

SOMFY MOTOR
Tester Wiring Diagram
for Direction 1 Rotation
SOMFY MOTOR
Tester Wiring Diagram
For Direction 2 Rotation
Note: Cap close (black) wire.
Black
Red
White Open Green
NEU GND
120 VAC
Note: Cap Close (Red) Wire
Black
Red
Open White Green
HOT NEU GND
120 VAC
HOT
