Hired-Hand Unitized Mega Cool: Square Bottom - Manual (Page 17)

Part No. 4801-5396 Rev. 5-08 Unitized System - Square Reservoir Page 17 of 63

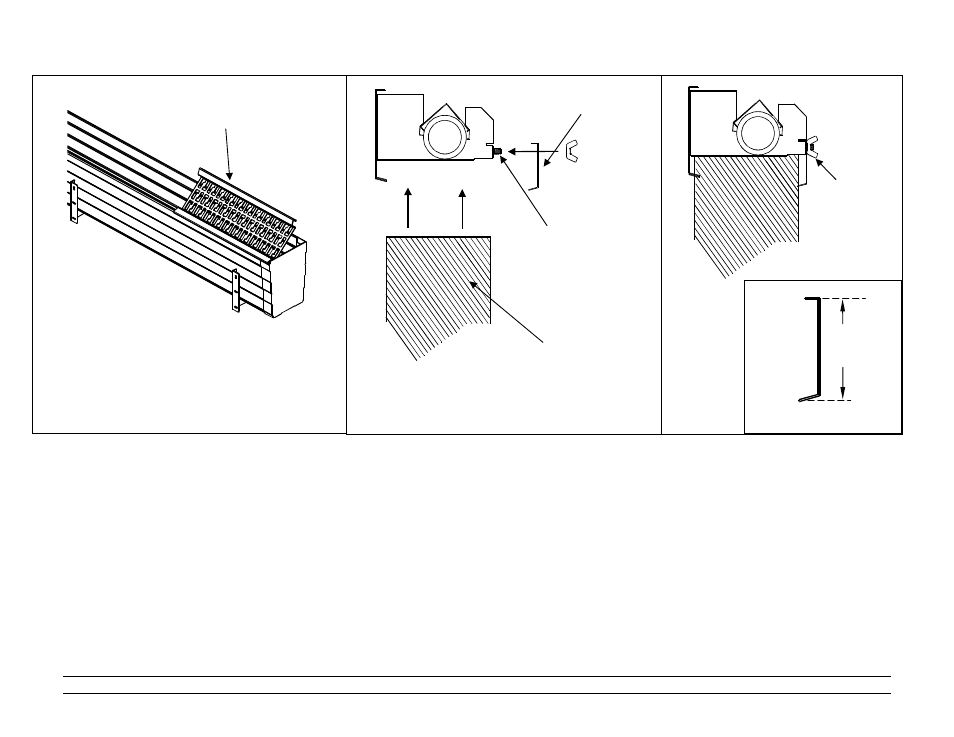

Install Cool Pads and Front Covers
1. Snap the Pad Supports into the top of the Reservoir. See
Figure 1.
2.
Insert the pads into the pad supports at the bottom. Fit the
top of the cool pad underneath the spray line support
bracket and against the back plate. Use the arrows on the
pads to determine which way to insert. Repeat for all
pads. See Figure 2.
3.
Insert the top flange of the cover into the slots of the
brackets. See Figure 2.
4.
Tighten the wing nuts to secure the cover in place. See
Figure 3.
5.
Add the cover splice to each joint where two covers meet.
Wing nut
Press-Fit Bolt
Side View
Side View
Cover
Cool Pad
Mega
Cool
Cover
5.141”
(13.06 cm)
Pad Support
Figure 1 Figure 2
Figure 3
Cover Splice Layout
