Part No. 4801-5396 Rev. 5-08 Unitized System - Square Reservoir Page 18 of 63

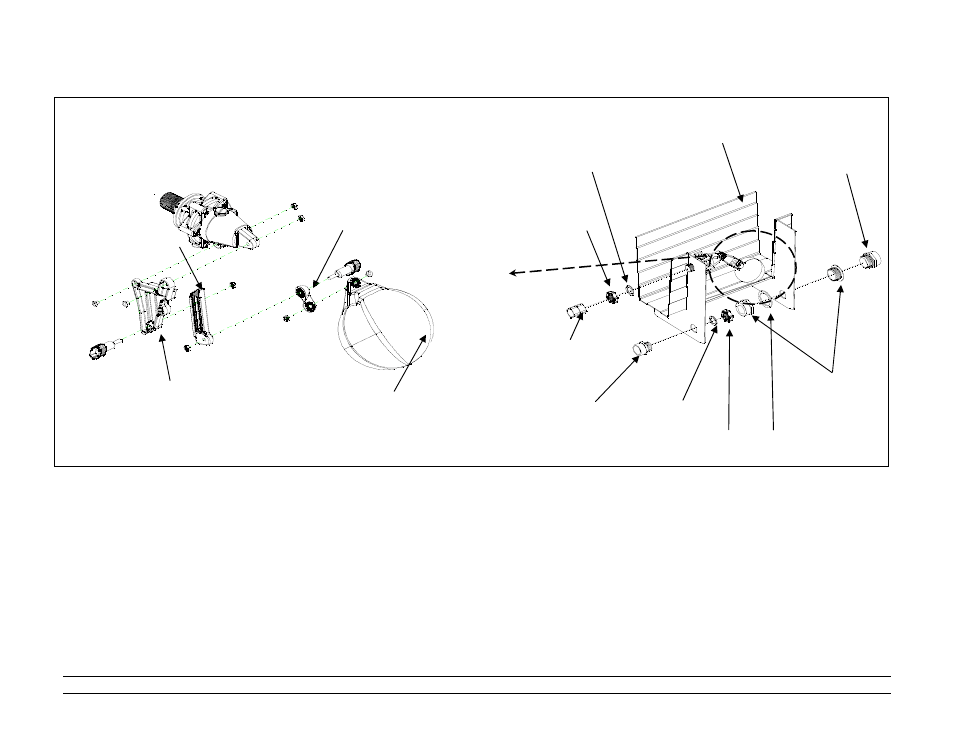

Assemble Float Valve
1. Follow the diagram above to assemble the float valve, arm, and
ball float.
2. After assembling the float valve, adjust the arm to give an angle
of 45
° between the valve and ball float.
Assemble Float Valve (Water Tank Pump)
1. Insert the threaded end of the float valve through the hole in the
tank. Attach the ring nut and washer to the inlet. Tighten the
ring nut securely.
2. Screw the hose fitting into float valve inlet.
3. Screw the water supply hose onto fitting.
1. Make the final float valve adjustment.
2. Replace the cover.
95 mm Float ball
(1009-0111 )
Hose Adaptor
3/4"x 3/4"
(1021-0113)
Float 90° Swivel
(1009-0109) Ext Slide Arm
(1009-0112)
Triangle Extension
Arm 3/4"
(1009-0102)
Backing Nut 3/4"
(1001-4999)
Washer 3/4"
(1003-0111)
Gasket
(1028-5003)
Coupling
(1021-6020)
Water Tank
(0406-8196)
Nut
(1001-5008)
Washer
(1028-4999)
PVC Tank
Adaptor
(1021-6019)
Fitting
1021-6021
