Connecting power and testing the motor – Hired-Hand Unitized Mega Cool: Square Bottom User Manual
Page 34
Part No. 4801-5396 Rev 5-08
Unitized System – Square Reservoir
Page 34 of 63

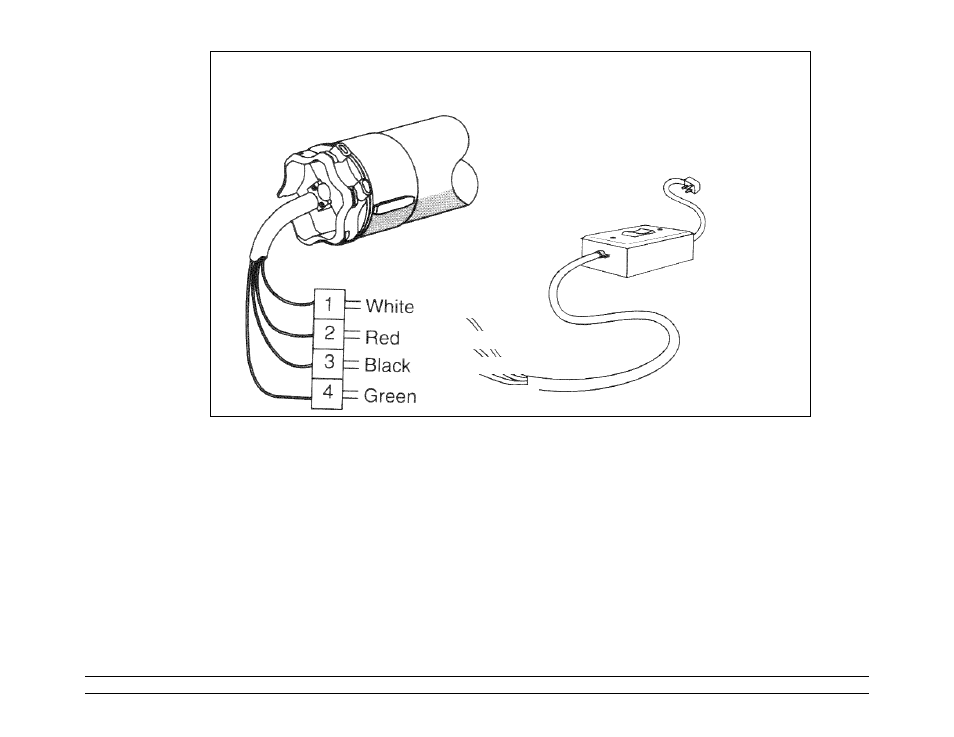

Somfy recommends using a test
cable to set the motor limits, and to
ensure the system is operating
properly before the final electrical
connection is made.
(Neutral)
(Clockwise)
(Counterclockwise)
(Earth Ground)
See Section "Motor Tester
Wiring Diagram" for test cable.
Connecting Power and Testing the Motor
1.
See section “Tubular Motor Tester Wiring Diagram” for a description of test cable. Construct test
cable and connect the test cable to the motor cable. Match the wire colors and connect the power.
2.
Remove yellow protective cap from the limit switch adjustments buttons.
3.
Press both limit switch adjustment buttons inward. (The buttons will automatically remain
locked).
4.
Check that the motor rotates properly when switch is turned on.
5.
Disconnect electrical power while installing curtains.
