Back plates – Hired-Hand Unitized Mega Cool: Square Bottom User Manual
Page 22
Part No. 4801-5396 Rev 5-08
Unitized System – Square Reservoir
Page 22 of 63
Back Plates
1.
Attach the back plates to the mounting brackets with sheet metal screws. The edges of the back plate
must be centered with the face of the mounting brackets.
2.
Attach #14 x 1" Hex Tek screws through topmost holes of back plate. (NOTE: The lower screw holes
are for attachment of vertical members. Do not install screws through lower holes at this time).

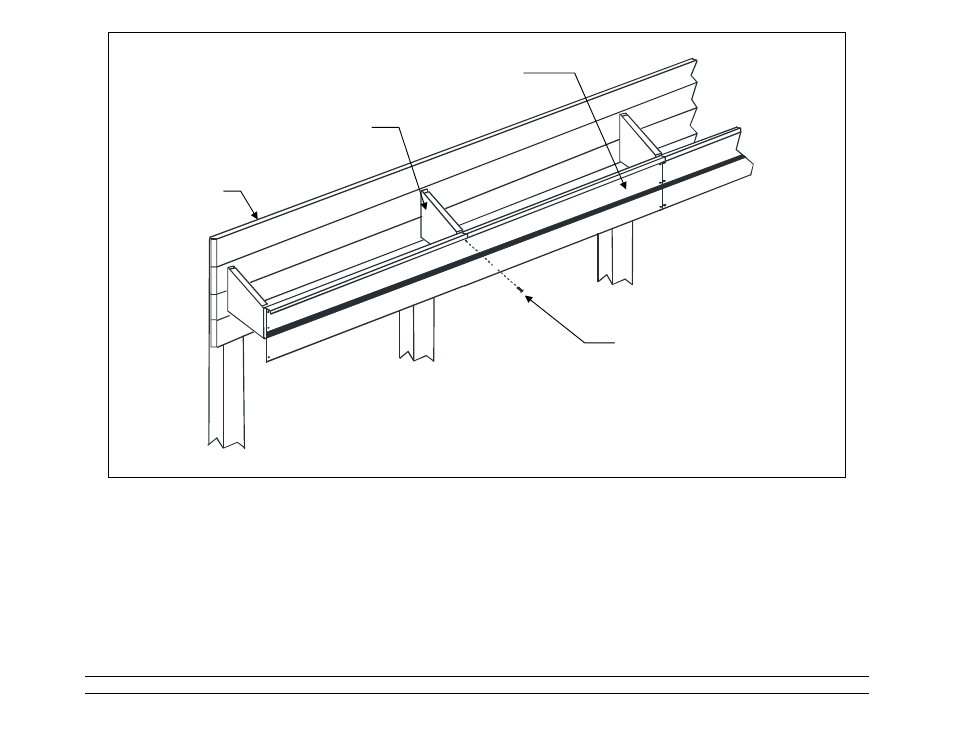

Wall boards
Top Mounting
Bracket
Back Plate
Attach back plates to
brackets with #14 x 1”
Hex Tek screws
