Install splash guards – Hired-Hand Unitized Mega Cool: Square Bottom User Manual
Page 16
Part No. 4801-5396 Rev. 5-08
Unitized System - Square Reservoir
Page 16 of 63

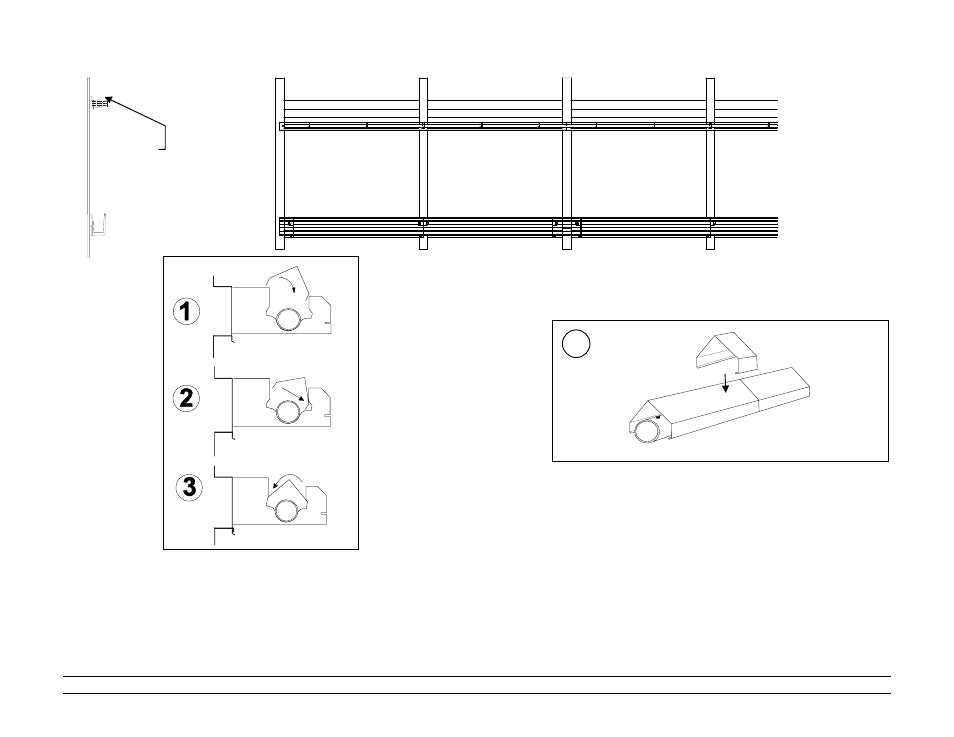

Insert splash guard into the
support bracket.
Press the front of the
splash guard into the
bracket as shown.
Squeeze and twist the
splash guard downward to
snap the splash guard into
place.
Support
Bracket
Splice
4
Install Splash Guards
1.
Insert the splash guard into the support bracket as shown above.
2.
Press the front edge of the splash guard against the support bracket as shown.
3.
Use both hands to grip the splash guard near midpoint. Squeeze and rotate the splash guard downward until it locks into position in
the support bracket.
4.
Add a splash guard splice to each joint where two splash guards abut.
Front View
Side View
