Install spray line – Hired-Hand Unitized Mega Cool: Square Bottom User Manual
Page 14
Part No. 4801-5396 Rev. 5-08
Unitized System - Square Reservoir
Page 14 of 63
1
2
3
Install Spray Line
1. Glue the spray line sections together.
Important! Glue the joints with spray line holes pointed in the same direction. Allow glue to dry.
2. Insert the spray line assembly into one end of spray line bracket. Slide the assembly until spray line spans entire length of spray line
bracket.
3. Rotate the spray line to place holes facing upward.
Rotate the spray line
to point holes upward.

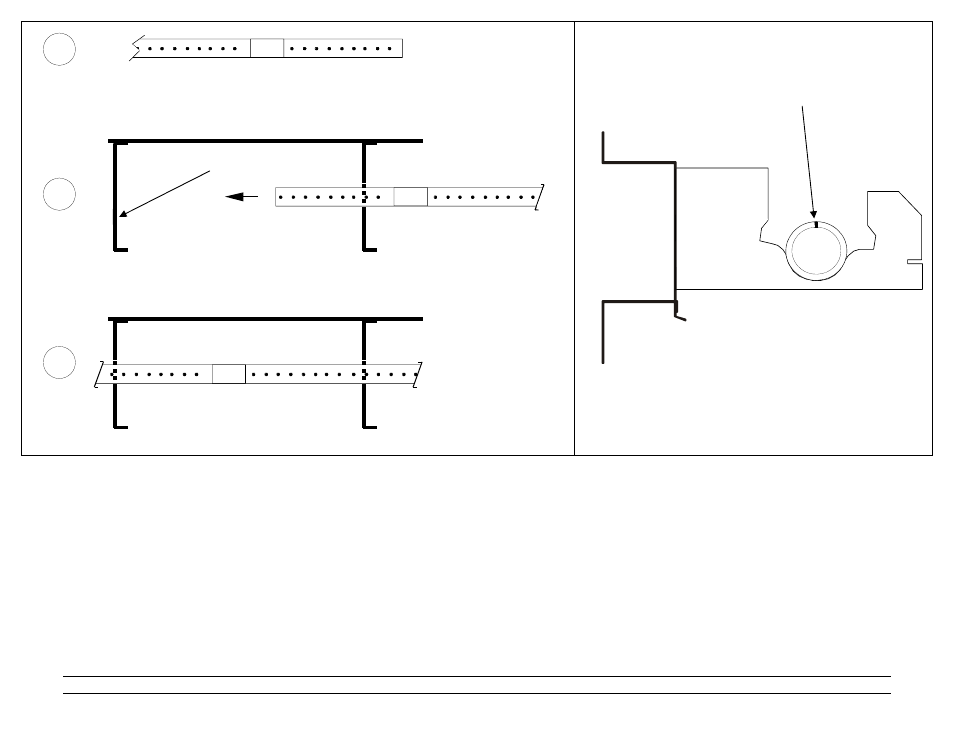

Assemble Spray
Lay Spray Line into Spray Line Support Brackets
Spray Line Installed with Holes Upward
Spray Line Support Bracket
Top View
Side View
