Part No. 4801-5396 Rev 5-08 Unitized System – Square Reservoir Page 46 of 63
Drive
Pipe
Placement of the Drive Pipe into the Guide Brackets if Assembled on the
Ground
1. After fastening pipe sections together and installing motor, lift drive pipe assembly and place it onto guide
brackets at the top of the track units.
NOTE: The drive pipe is heavy and will require several workers to lift it into position.
CAUTION! Do not attempt to lift the drive pipe without a sufficient number of workers.
2.
For installation of very long drive pipes it may be necessary to leave one or more junctions of the drive pipe
unattached to create lighter drive pipe sections that can be more easily lifted onto the guide brackets. Connect
the loose junctions with pop rivets after the drive pipe is placed onto guide brackets.

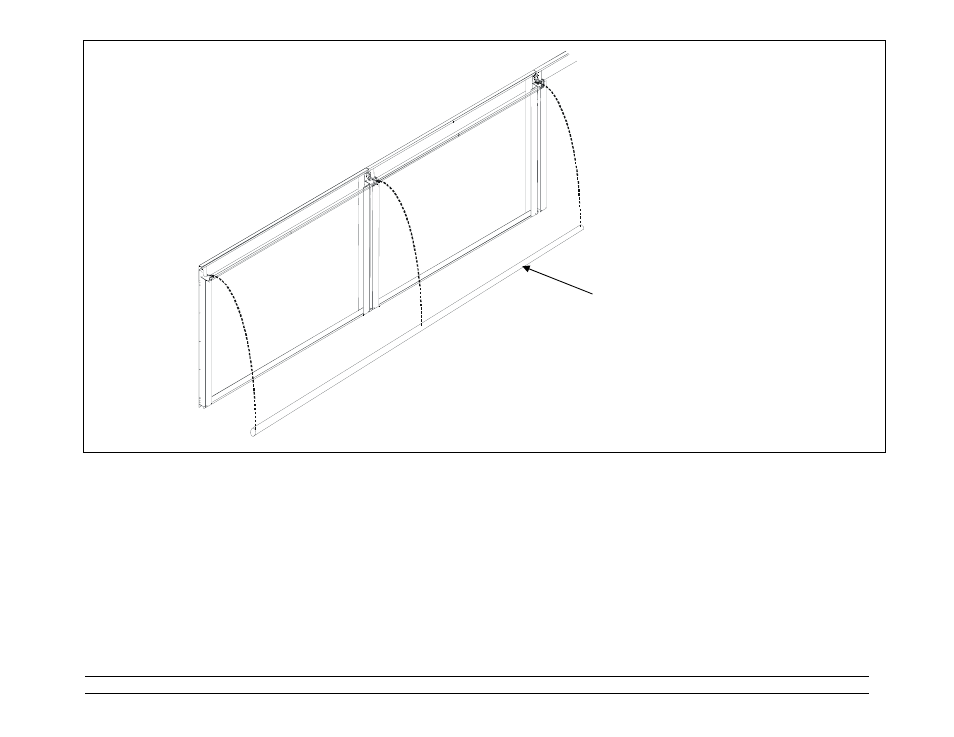

Lift the drive pipe assembly
and place it on the guide
brackets at the top of the track
units.
Note: The drive pipe
assembly is heavy! Make
sure that there are a sufficient
number of workers to lift the
drive pipe onto the guide
brackets.
Drive Pipe
