Top covers and top flashing – Hired-Hand Unitized Mega Cool: Square Bottom User Manual
Page 50
Part No. 4801-5396 Rev 5-08
Unitized System – Square Reservoir
Page 50 of 63
Top Covers and Top Flashing
After completing the curtain installation, and setting
and testing the limit switches on the motor, install
the top covers.
1.
Place top covers as shown.
2.
Attach top covers to back plate with sheet
metal screws.
3.
Attach end cap to each end of curtain system
with sheet metal screws.
4.
Fit top flashing to top of support brackets.
5.
Bolt back flange to stringers with 1/4"x1 1/2" hex lag screws.
6.
Attach flashing to top of support bracket with #14x1" tek screws
located 1/2" from bottom edge of bracket.

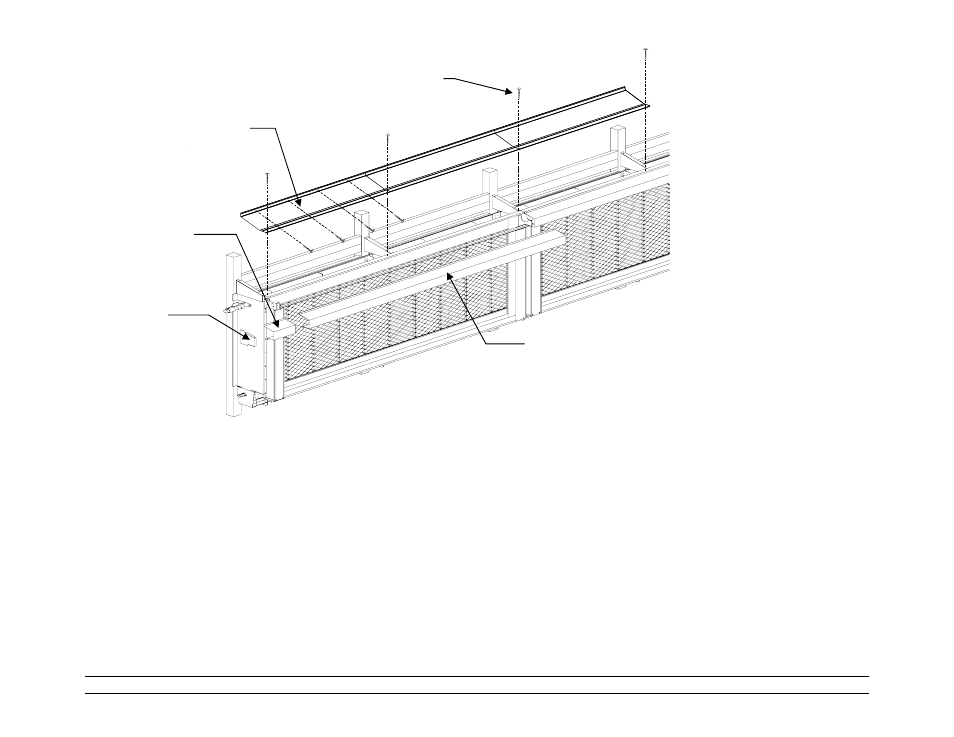

NOTE: For clarity, drive
pipe is not shown in this
view.
Attach Top Cover over
drive pipe and mounting
bracket
.
End Cap
Splice
Bolt Back Flange
to Stringers
Attach flashing to
top of support
bracket
