Attachment of the tubular motor to the motor mount – Hired-Hand Unitized Mega Cool: Square Bottom User Manual
Page 31
Part No. 4801-5396 Rev 5-08
Unitized System – Square Reservoir
Page 31 of 63
Attachment of the Tubular Motor to the Motor Mount
1.
Lift the end of the drive pipe containing the motor. Press the motor into the bracket that is installed on the
motor mount.
2.
Make sure that the limit switches are accessible.

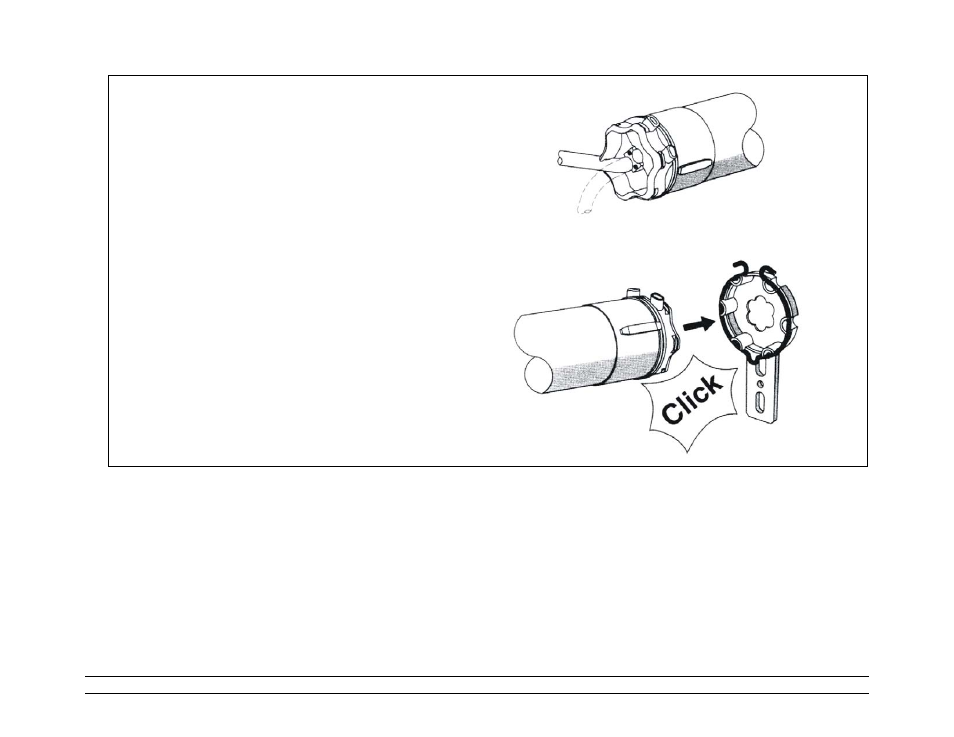

Motor Cable Positioning
Depending on the application, the motor cable can
pass through the center of the side of the motor head.
Raise the yellow cover plate, reposition the cable, and
press the cover plate into position.
Mounting the Motorized Tube
The motor brackets are equipped with a clip ring. This
clip ring does not have to be removed for installation.
You can press the motor axially into the motor bracket
in any of six positions so that the limit switch
adjustment buttons are always easily accessible.
