Part No. 4801-5396 Rev 5-08 Unitized System – Square Reservoir Page 41 of 63

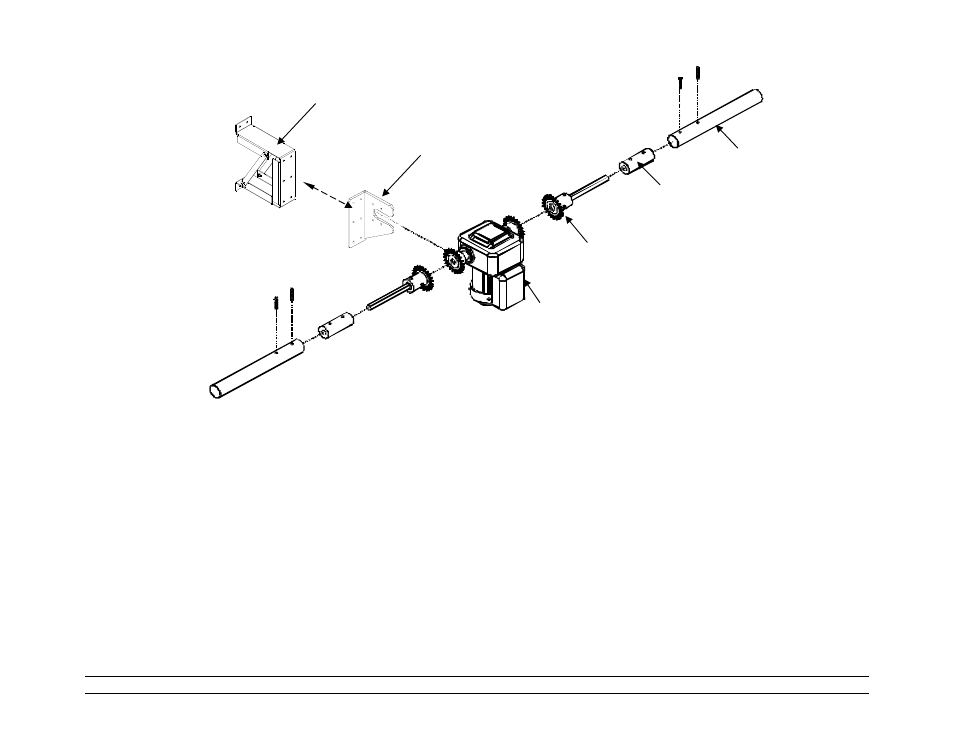

Motor
shaft/sprocket
assembly
Drive insert
Drive pipe
Motor
Mounting
Bracket
Assembly
Motor Mount
Installation of Lock Motor
1. Refer to Section -'Placement of Drive Pipe into Guide
Brackets' for instructions on installing the drive pipe
into the guide brackets.
2. Insert the drive shaft / sprocket assembly into center
hole of drive insert. Rotate drive shaft to align flat on
shaft with two screw holes in drive insert.
3. Attach the Lock motor to the motor mount with the four
bolts provided. Tighten the bolts securely.
4.
After attaching the Lock motor to the motor mount, bolt
the motor mount to the mounting bracket with 3/8-16 x
1” hex bolts and 3/8-16 nuts. Attach the mounting
bracket to the filler with 3/8 x 2” lag screws. If
necessary, loosen the two screws holding the drive
insert and the drive shaft. Slide the drive shaft to
achieve proper spacing between the sprockets. Tighten
the set screws securely.
5. Connect the sprockets together with the double link
chain.
