9. After the curtains are secured to the hook and loop strips on the sides of the track units in step 6, insert the
tension bars into the folds of the curtain. This will pull the curtain taut as the hook and loop strip is pressed
securely.
10. Repeat steps 1 through 7 for all side wall curtain systems.
11. Install top covers. Attach top covers to guide brackets with nuts and screws provided.
12. Install electrical power to the tubular motor. See Section “Electrical Wiring Diagram”.
13. Work out any bulges or creases in the curtains by unzipping and zipping the hook and loop strips as required
to achieve a tight fit.
12. This completes curtain installation.
1. Bring loose end of Curtain
Behind and over top bar.
Secure the hook and loop
strip of curtain to the hook
and loop strip on the top
bar.
2. Secure the hook and loop
strips along the edges of the
curtain to the hook and loop
strips on the track units.
3. Insert weights into folds of
curtain.
a
b
c

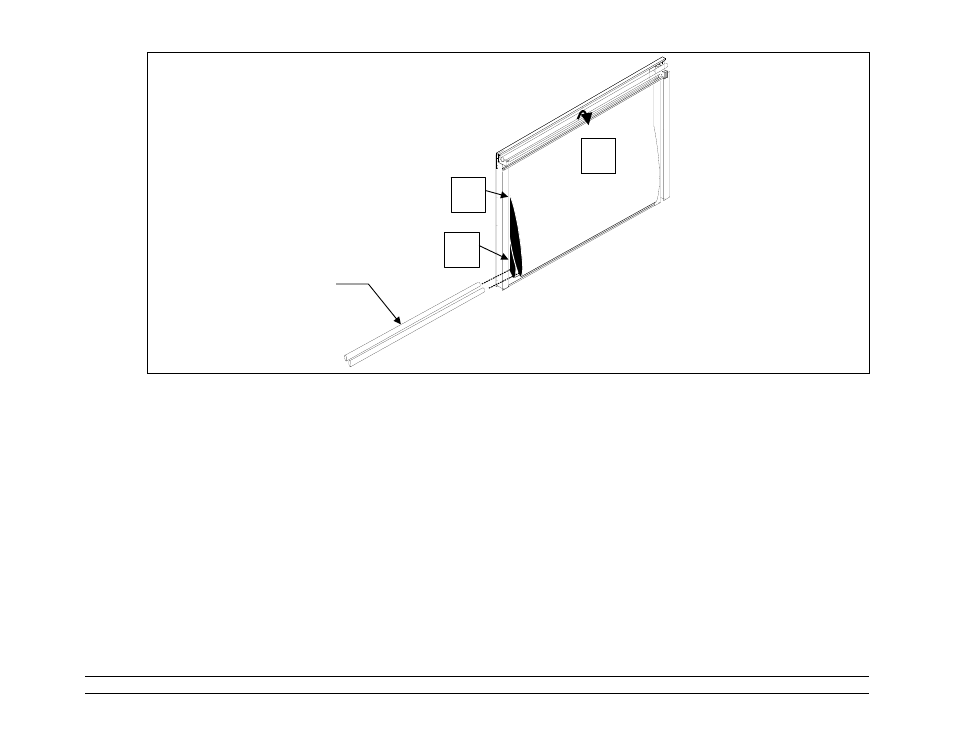

Completing Curtain Installation
Tension Bars
(Insert into
folds of curtain)
b. Secure the hook and loop strips
along the edges of the curtain to
the hook and loop strips on the
track units.
a. Bring front panel of curtain behind and
over top bar. Secure front panel hook
and loop strip to hook and loop strip
on top of top bar.
c. Insert tension weights into folds of
curtain. Place curtain (with bars installed) into
the inside of the track unit. Press hook and loop
strips of curtain against hook and loop strips on
the track units.
