Curtain Installation
A RollSeal curtain has three panels: a back panel, a center panel, and a front panel. The curtain has hook-and-loop
strips attached to the edges. These hook and loop strips interlock with the hook and loop strips laminated on the track
units, drive pipe, and top bar. The curtain is held taut by two cylindrical weights that fit into the folds of the curtain.
This design creates a seal when the curtain is lowered, and enables the unit to be raised by a single drive.
1. Each curtain is shipped in a roll. Lay the curtain roll on the ground in front of each opening so that the curtain
unrolls away from the system.
2. Unroll the curtain slowly. (This works best if two workers pull the corners of the curtain). Note that the curtain
has three ends with hook and loop strips attached. The panel having 2" wide hook and loop strips on the top of
the curtain and 1" wide strips down each side (which offset 2 1/2" from edge) is the back panel that attaches to
the back plate. The end having 1" hook and loop strips on the top and no hook and loop strips running down the
sides is the center panel which will attach to the drive pipe. The panel with the 1" strip running at top and 2"
strips on the sides is the front panel. The front panel attaches to the top bar.

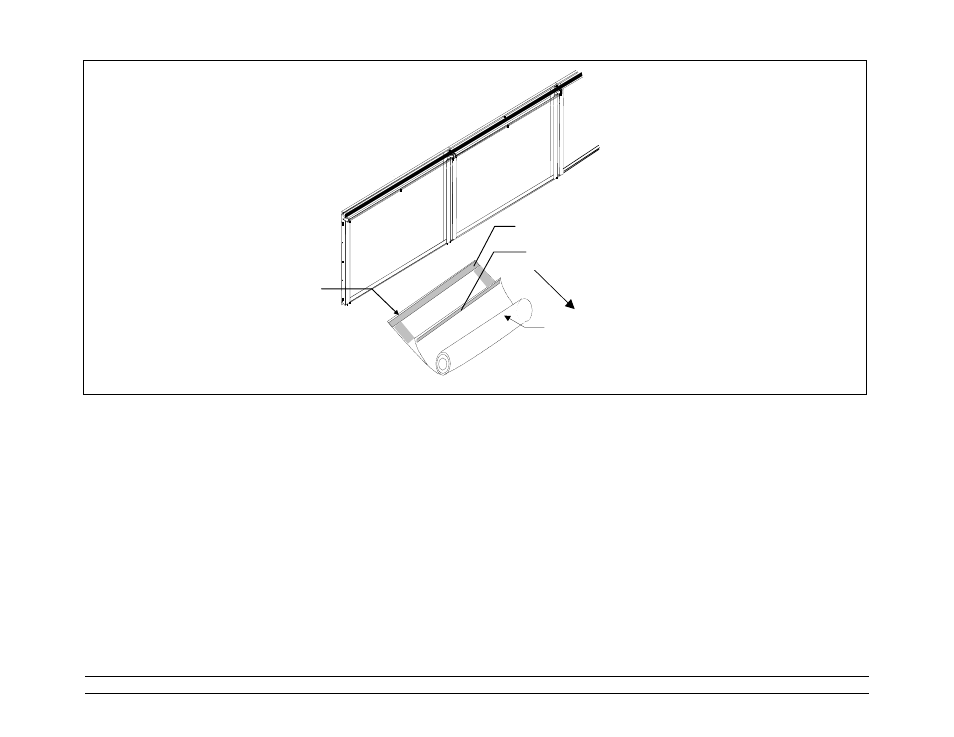

Hook and Loops on backside of
curtain attaches to hook and
loop strips on back plate.
Unroll curtain away
from opening.
Front Panel:
A third hook and loop strip at end
of roll attaches to top bar.
Back panel
Center panel
Curtain Installation
