Center Tracks

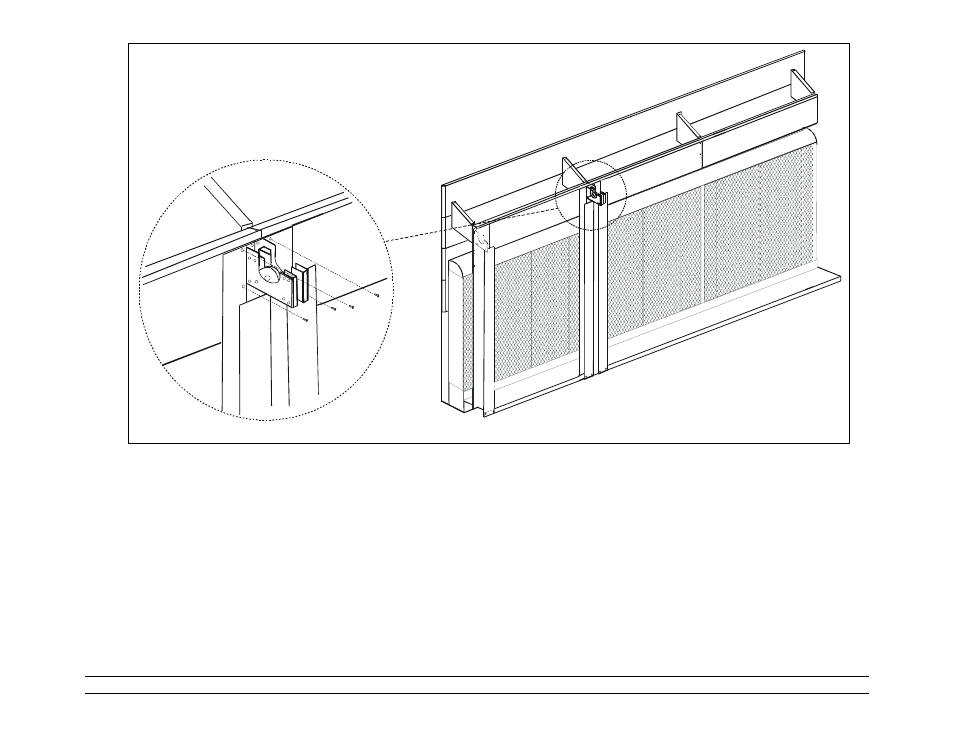

1. Move to the next joint where the edges of two back plates abut, and install a center track. Align the two
topmost holes of the center track with the second holes from the top of the back plates as shown in the
diagram above.
2.
Insert a 1/4-20 x 1/2" Hex Bolt Through second hole from the top of the center track and secure with a
1/4-20 Hex Nut.
3.
Install #14 x 1” Hex Tek screws through holes to fasten the center track.
4.
Fasten the bottom of the center track to the bottom support bracket with 1/4-20 x 1/2" Hex Bolt and nut.
5.
Install all center tracks by repeating steps 1-3.
Center Track
