User-defined graphs, Canvas configurations, User-defined graphs canvas configurations – Brocade Web Tools Administrators Guide (Supporting Fabric OS v7.3.0) User Manual
Page 129

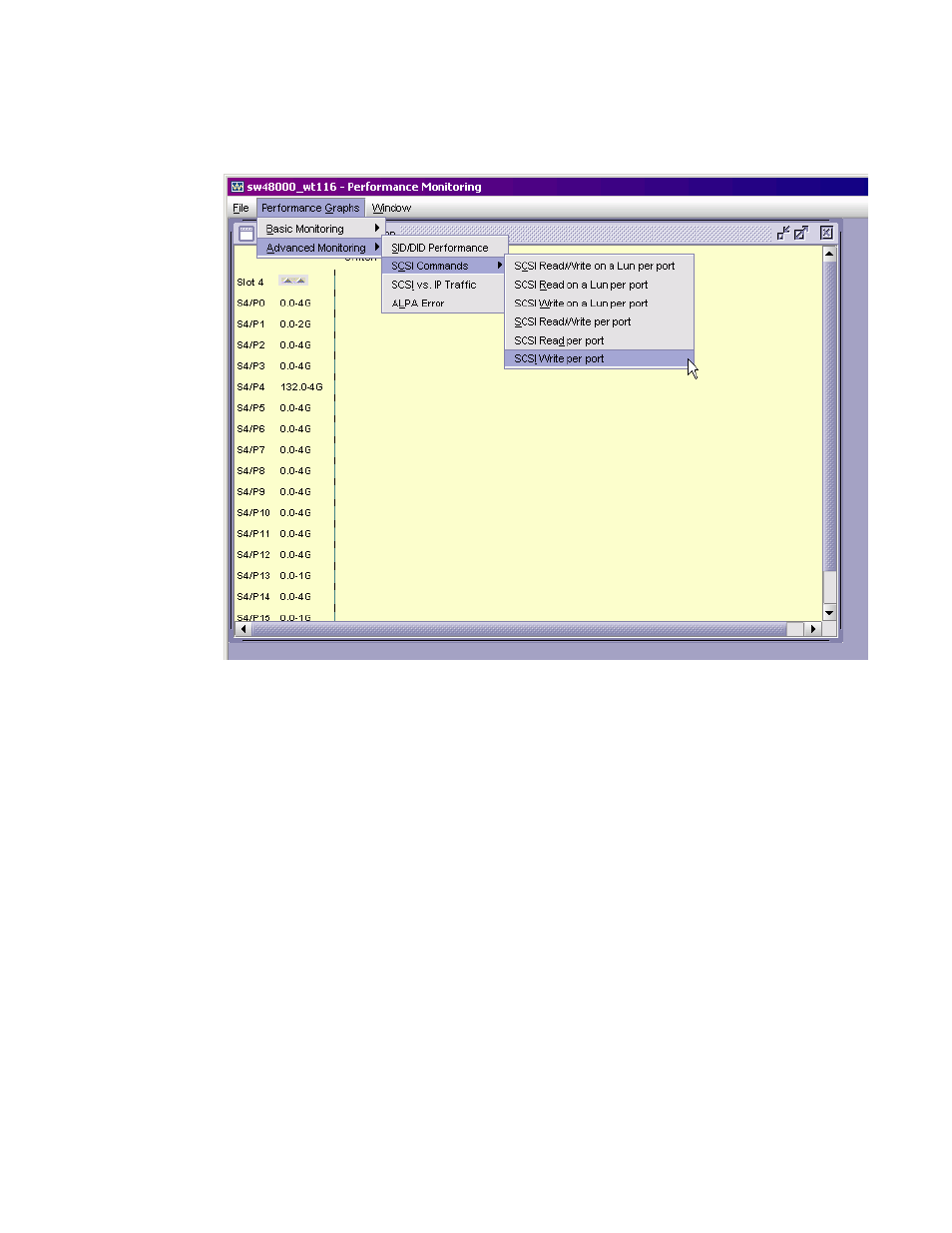

FIGURE 21 Accessing performance graphs
User-defined graphs
You can modify the predefined graphs to create your own customized graphs (refer to
on page 131 for more information). These user-defined graphs can be added
and saved to canvas configurations.
Canvas configurations
A canvas is a saved configuration of graphs. The graphs can be either the Web Tools predefined
graphs or user-defined graphs. Each canvas can hold up to eight graphs per window, with six shown in
the following figure. Up to 20 canvases can be set up for different users or different scenarios. Each
canvas is saved with a name and an optional brief description.
User-defined graphs
Web Tools Administrator's Guide
129
53-1003169-01
