CAS200 User’s Guide Chapter 4: Setup
Watlow Anafaze 55

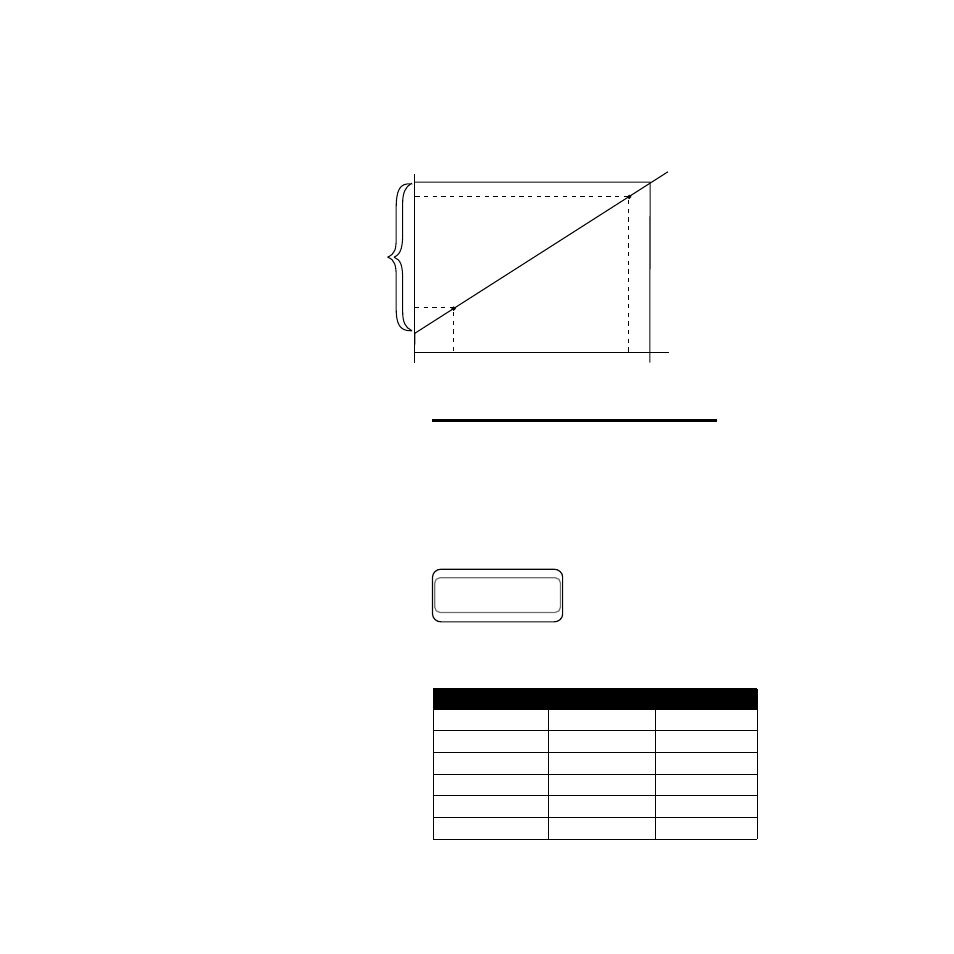

The PV (Process Variable) range for the scaled input is
between the PV values that correspond to the 0% and 100%
input readings. For the pulse input, it is between the 0Hz
and 2000Hz readings. This PV range defines the limits for
the setpoint and alarms, as shown here.
NOTE! For example linear scaling calculations, see
Chapter 6, Linear Scaling Examples on page 87.
Display Format
This menu lets you select a display format for a linear or
pulse input. Choose a format appropriate for your input
range and accuracy. (You will only see the Display Format
menu if you are editing a linear or pulse input.)
The CAS200 has several available display formats; the
display format you choose determines the default values for
the rest of the linear scaling menus.
Display Format Default High PV Default Low PV
-9999 to +30000 10000 0
-999 to +3000 1000 0
-99.9 to +3000.0 1000.0 .0
-99.99 to +300.00 100.00 .00
-9.999 to +30.000 10.000 .000
-.9999 to +3.0000 1.0000 .0000
Hi PV
Lo PV
0 PSI
0%
0mV
0 Hz Lo
Rdg 100%
60mV
2000 Hz} Pulse input type
Process
Variable
Input Reading
Range
} Linear input type
CHANNEL PROCESS UNITS
CHANNEL NAME ALARM STATUS
01 DISP FORMAT ?
-999 TO 3000
