Front Panel
The front panel provides a convenient interface with the
CAS200 system. You can program and operate the CAS200
with the front panel keys shown below, or you can use
WatView or ANASCAN software.

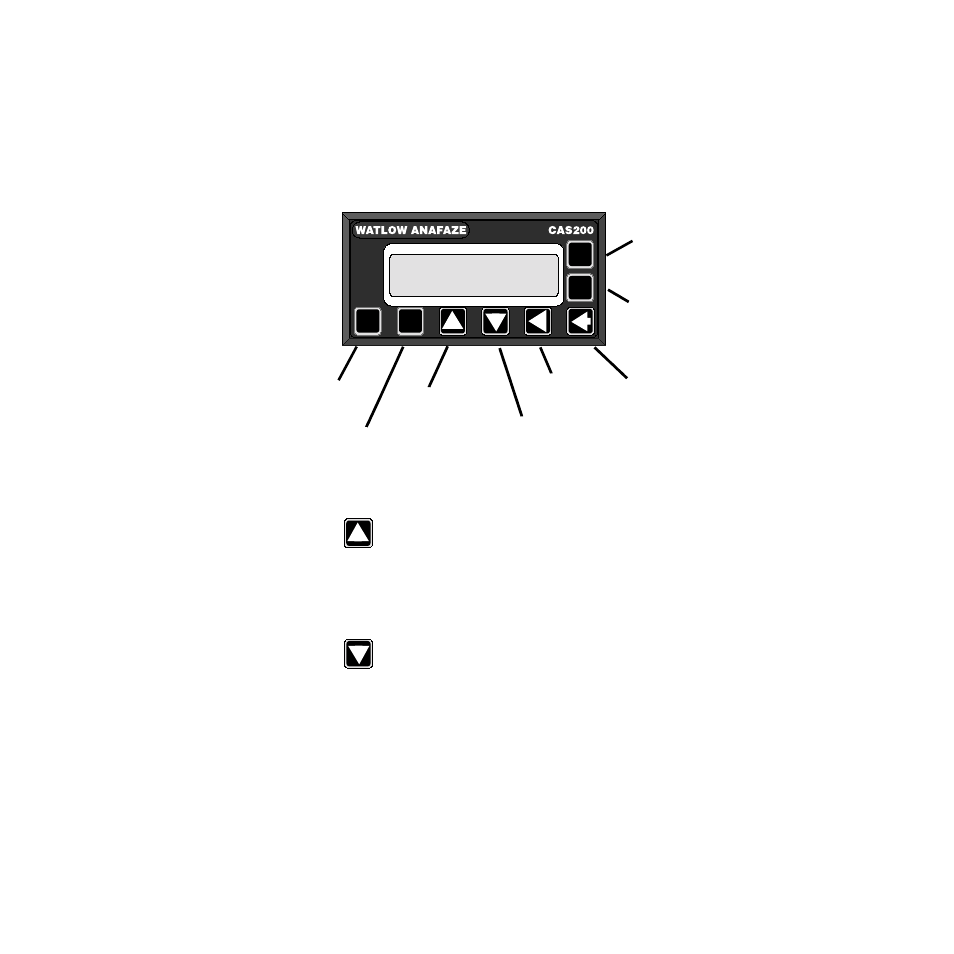

Figure 3.2 Front Panel Display
Front Panel Keys
Press Yes to:
• Select a menu.
• Answer Yes to Yes/No questions.
• Increase a number or choice you're editing.
Press No to:
• Skip a menu you don't want to edit when the prompt is
blinking.
• Answer No to Yes/No prompts.
• Decrease a number or choice when editing.
• Perform a NO -key reset to clear the memory.
FUNC
-No function in the
CAS200.
Change Setpoint
-Used for changing setpoints.
Yes
-Selects a menu
-Answers Yes to Yes/No prompts
-Increases a number or choice
No
-Skips a menu
-Answers No to Yes/No prompts
-Decreases a number or choice
you are editing
Back
-Aborts editing and
returns to a previous menu
Alarm Reset
-Resets alarms when
the process is safe
Alarm Ack
-Turns off global alarm,
digital alarm stays active
Enter
-Stores data or menu choices
& advances to the next menu
- Starts scanning mode
(if pressed twice)
ALARM
ACK
ALARM
RESET
BACK CHNG
SP ENTER FUNC NO
YES
CHANNEL PROCESS UNITS
CHANNEL NAME ALARM STATUS
Yes YES
No NO
