TB50 Physical Specifications
Table 7.7 TB50 Physical Dimensions

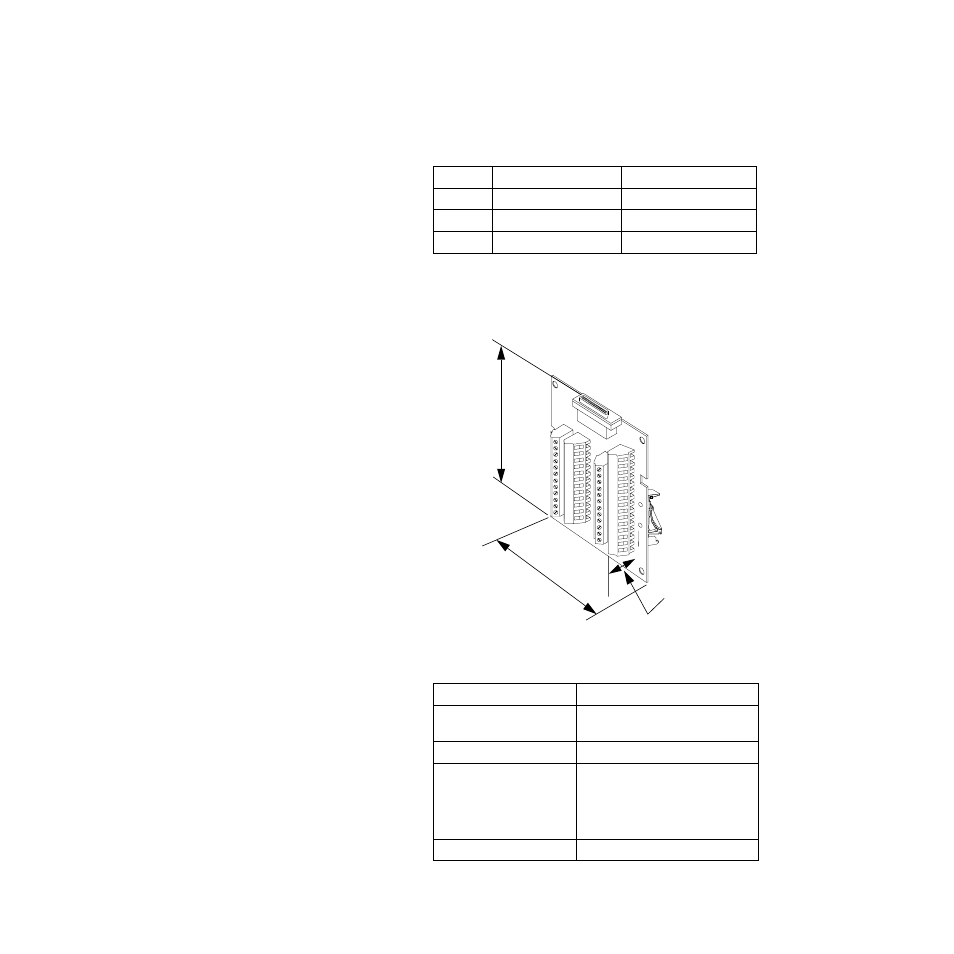

Figure 7.4 TB50 Dimensions
Table 7.8 TB50 Connections
Weight 0.32 lb 0.15 kg
Length 4.1 inches 104 mm
Width 4.0 inches 102 mm
Height 1.5 inches 37 mm
Screw Terminal Torque 4.4 to 5.3 in.-lb (0.5-0.6 Nm)
SCSI Connector on
Board
SCSI-2 female
Output Terminals Captive screw cage clamp
Output Wire Gauge
Multiconductor cables: 24 AWG
(0.2 mm 2 )
Single-wire: 22 to 18 AWG
(0.5 to 0.75 mm 2 )
Output Terminal Torque 4.4 to 5.3 in.-lb (0.5 to 0.6 Nm)
(37 mm)
4.1 in.
(104 mm)
4.0 in.
(102 mm)
1.5 in.
