Mounting the TB50

There are two ways you can mount the TB50, by using the
pre-installed DIN rail mounting brackets provided or by
using the plastic standoffs. Follow the procedures for each
to mount the board.

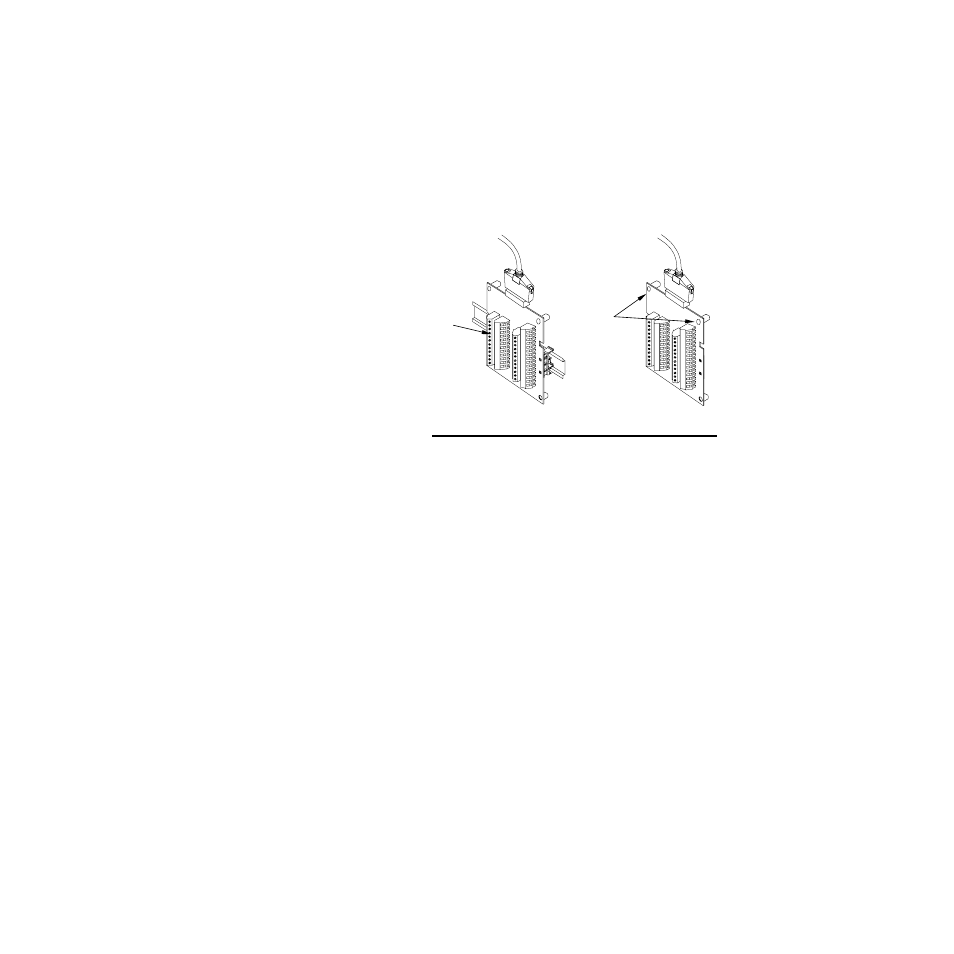

Figure 2.5

Mounting

NOTE!

If you choose to use the standoffs, you will need
to remove the DIN rail brackets before you can
mount the board.

DIN Rail Mounting

1. Attach the SCSI connector to the

TB50

Snap the

TB50

to the DIN rail.

To remove the

TB50

from the rail, use a screw driver

to unsnap the bracket from the rail with a flat-head
screw driver.

Mounting with Standoffs

1. Remove the DIN rail mounting brackets from the

TB50

Select a location with enough clearance to safely
remove the TB50, its SCSI cable and the scanner itself.

Place the

TB50

where you will mount it and use a pen-

cil to trace around the standoffs.

Drill and tap #6-32 holes in the locations you marked.

Place the

TB50

where you will mount it. Insert the #6

screws in the standoffs and tighten them.

There are also four smaller holes on the terminal
board for mounting with tie wraps. Use these holes to
secure wiring to the

terminal block

TB50
Mounted to
DIN Rail

TB50 Mounted
with Standoffs
